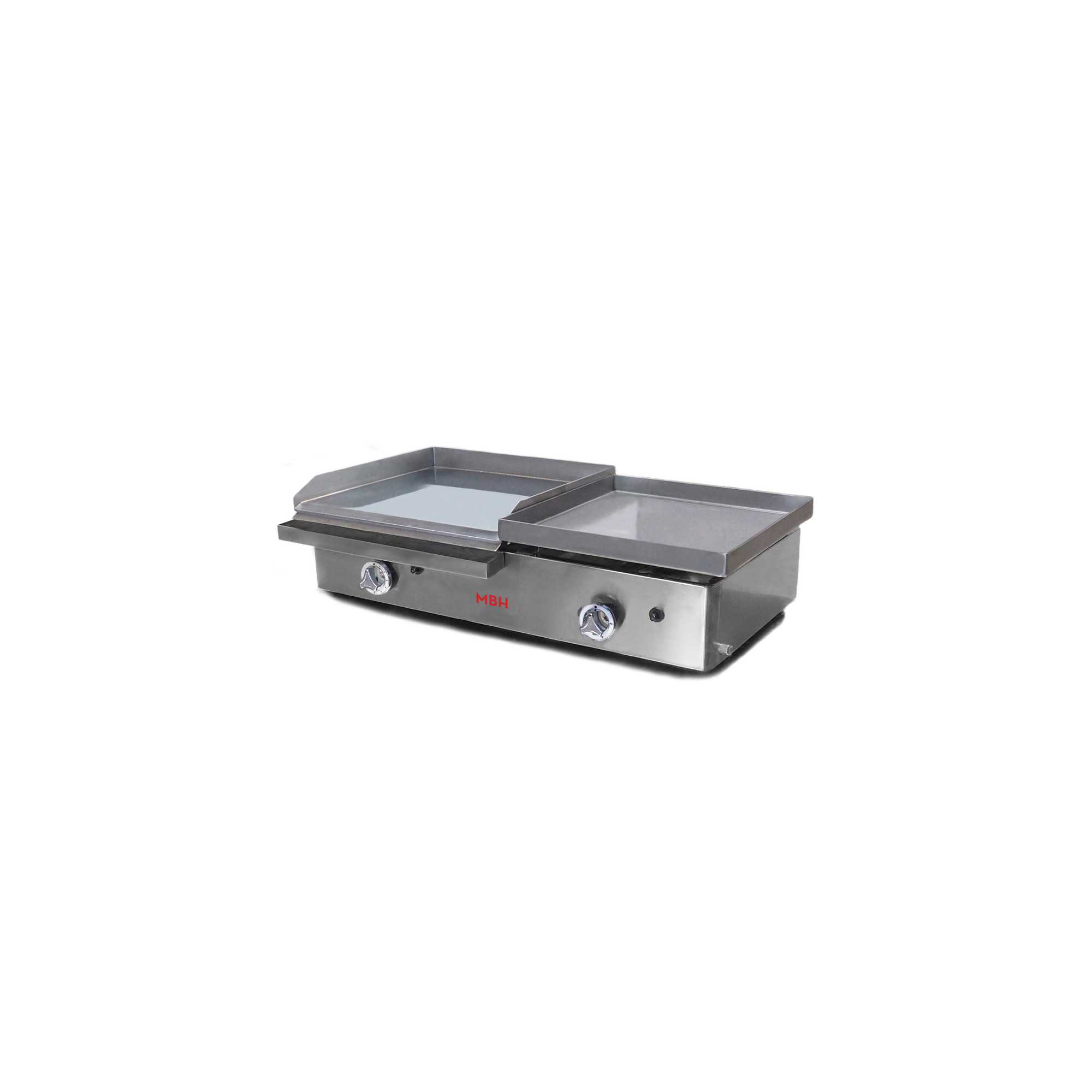

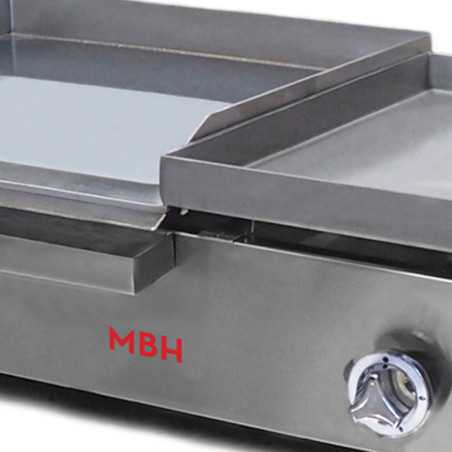

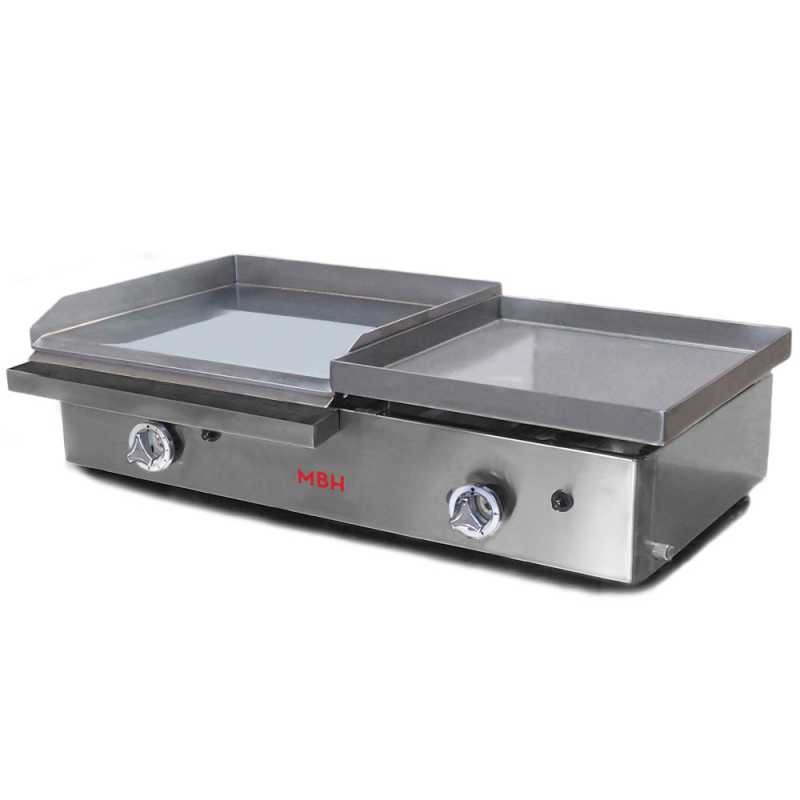

Professional industrial hard chrome iron for gas frankfurt

Frankfurt griddle in hard chrome, with a stainless steel cabinet and rounded edges for easier cleaning.

GENERAL FEATURES

• 1 hard chrome plate, 8 mm thick and 50 microns hard chrome + 1 Frankfurt plate 400 x 400 mm.
• Large-capacity stainless steel grease tray, with rounded edges and
• easy to remove.
• High-output burners with safety thermocouple.
• With thermostatic valve.
• High-quality bakelite control knobs with maximum/minimum indicator.
• Removable front panel for easier maintenance work.
• Height-adjustable feet.
• New system that makes injector replacement easier.
• Prepared for left or right-side gas connection.
• Set for Butane gas, includes injectors for natural gas.
• With electric ignition component for easier lighting.

TECHNICAL SPECIFICATIONS

MODEL: 40+40 FRK

• FRANKFURT GRIDDLE DIMENSIONS: 400x400 mm
• HARD CHROME GRIDDLE DIMENSIONS: 400x400 mm
• THERMOSTATIC TAP: 1
• STANDARD TAP: 1
• BURNERS: 2
• TOTAL POWER: 6.4 kW-Gas
• OVERALL DIMENSIONS: 810 x 472 x 231 mm (Width/Depth/Height)

MODEL: 60+40 FRK

• FRANKFURT GRIDDLE DIMENSIONS: 400x400 mm
• HARD CHROME GRIDDLE DIMENSIONS: 600x400 mm
• THERMOSTATIC TAP: 1
• STANDARD TAP: 1
• BURNERS: 3
• TOTAL POWER: 8.9 kW-Gas
• OVERALL DIMENSIONS: 1010 x 472 x 231 mm (Width/Depth/Height)

MODEL: 80+40 FRK

• FRANKFURT GRIDDLE DIMENSIONS: 400x400 mm
• HARD CHROME GRIDDLE DIMENSIONS: 800x400 mm
• THERMOSTATIC TAP: 2
• STANDARD TAP: 1
• BURNERS: 4
• TOTAL POWER: 12.1 kW-Gas
• OVERALL DIMENSIONS: 1210 x 472 x 231 mm (Width/Depth/Height)

ANTI-OXIDATION MAINTENANCE FOR ROLLED AND GROUND PLATES AFTER THE LAST USE

1. Clean the griddle while still hot to remove grease and dirt residues.

2. Rinse with water and remove all detergent thoroughly.

3. Heat the plate at maximum power for a few minutes until all moisture has completely evaporated, including the inner and outer sides.

4. Apply a generous layer of oil over the entire plate and sides using a clean cloth.

5. Cover the plate with newspaper soaked in oil to create a protective anti-oxidation layer until the next use.

Important: Only hard chrome plate griddles do not require this maintenance.

In case of oxidation, remove the rust with a metal scouring pad or pumice stone, clean when cold and repeat the entire process above.
