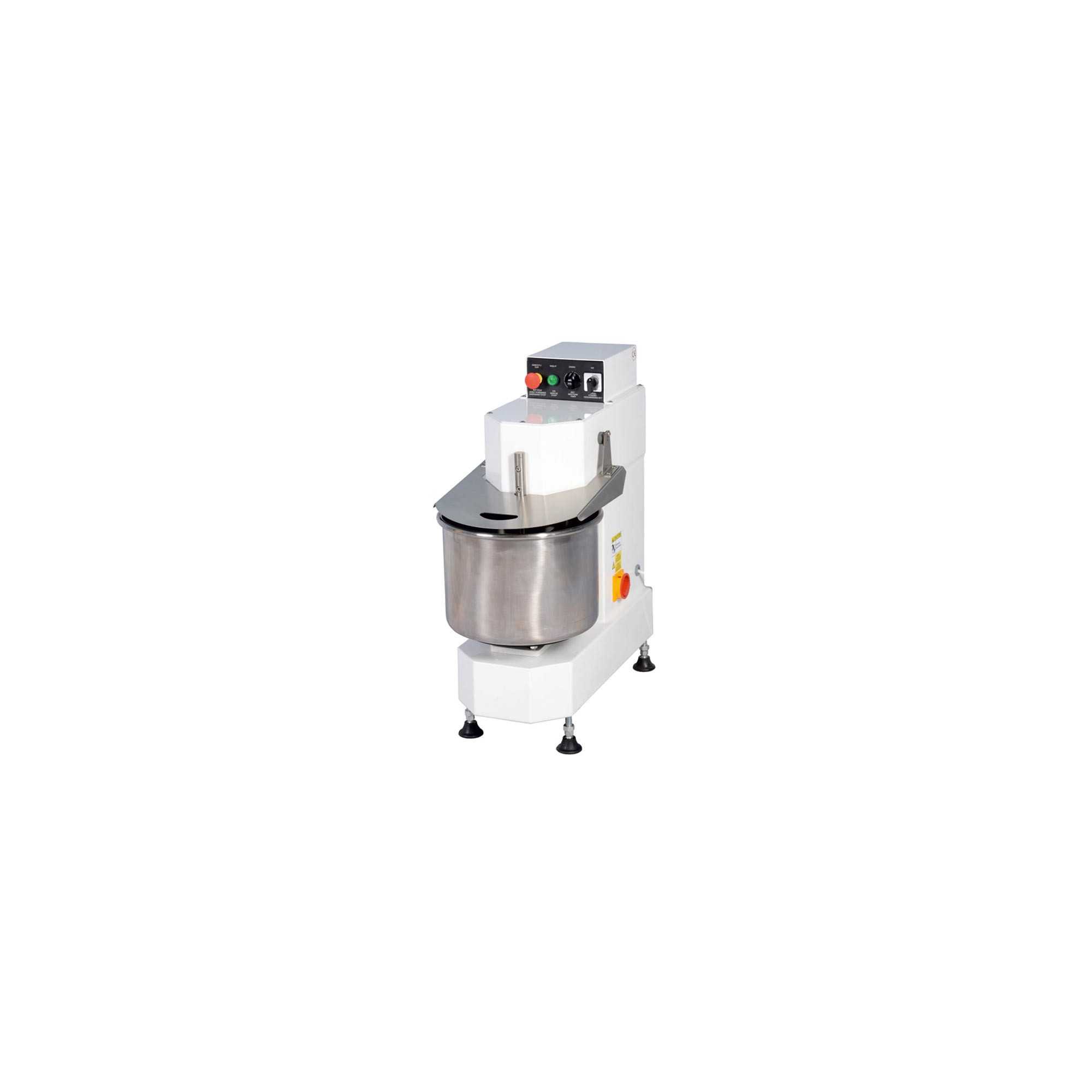

Professional mixers with spiral hook

Spiral hook mixer with bowl and fixed head with 2 speed or variable speed, in different capacities, especially recommended for bakeries, hotels or restaurants, sectors in which reliable and high-performance kitchen appliances are essential.

GENERAL CHARACTERISTICS

• The spiral mixers provide a very intense, fast, homogeneous mixture without dead spots.
• It allows a very fast preparation without heating or tiring products such as dough, minced meat, etc. The dough is soft, well aerated and easy to extract.
• The rotation of the AISI-304 stainless steel bowl together with the movement of the spiral hook and the breaking bar provide an excellent mix, ideal for very heavy doughs such as bread, pizza, churros, batons and fresh pasta.
• They are designed with high-quality components suitable for prolonged use in heavy-duty conditions.
• Ergonomic and waterproof control panel with 60 minute timer.
• System that allows working with the tank at 5% of its capacity.
• Body painted in the oven with electrostatic painting resistant to corrosion.
• Parts that come into contact with food are made of stainless steel for hygiene and health.
• Available in a three-phase version with 2 speeds and a single-phase version with a speed variator (10% more efficiency).
• Movement system using bearings and chain.
• High-power asynchronous motor with silent and vibration-free operation.
• Cover made of AISI-304 stainless steel with a safety device that will stop the operation of the machine when the cover is opened.
• Spiral system protected against water (electrical controls IP 54, general machine IP 32).
• Designed to comply with EU safety directives and have a CE certificate of conformity.
• Equipped with leveling feet.

TECHNICAL CHARACTERISTICS

25 LITERS MODEL

• Boiler capacity (L): 25
• 2-speed model voltage (V): 400
• Variable speed model voltage (V): 230
• 2-speed model power (kW): 0.6/0.9
• Variable speed model power (kW): 1.5
• Bowl dimensions (mm): 360x200
• Dimensions (mm): 400x800x950
• Weight (Kg): 120

35 LITERS MODEL

• Boiler capacity (L): 35
• 1 speed model voltage (V): 400
• 2 speed model voltage (V): 230
• 2-speed model power (kW): 0.6/0.9
• Variable speed model power (kW): 1.5
• Bowl dimensions (mm): 430x260
• Dimensions (mm): 480x950x1000
• Weight (Kg): 140

50 LITERS MODEL

• Boiler capacity (L): 50
• 1 speed model voltage (V): 400
• 2 speed model voltage (V): 230
• 2-speed model power (kW): 0.75/1.1
• Variable speed model power (kW): 2.2
• Bowl dimensions (mm): 500x310
• Dimensions (mm): 540x1000x1100
• Weight (Kg): 160
