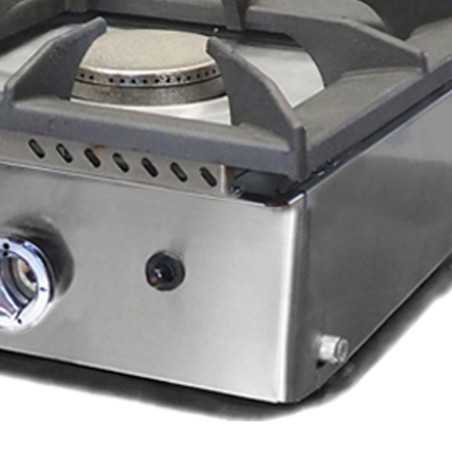

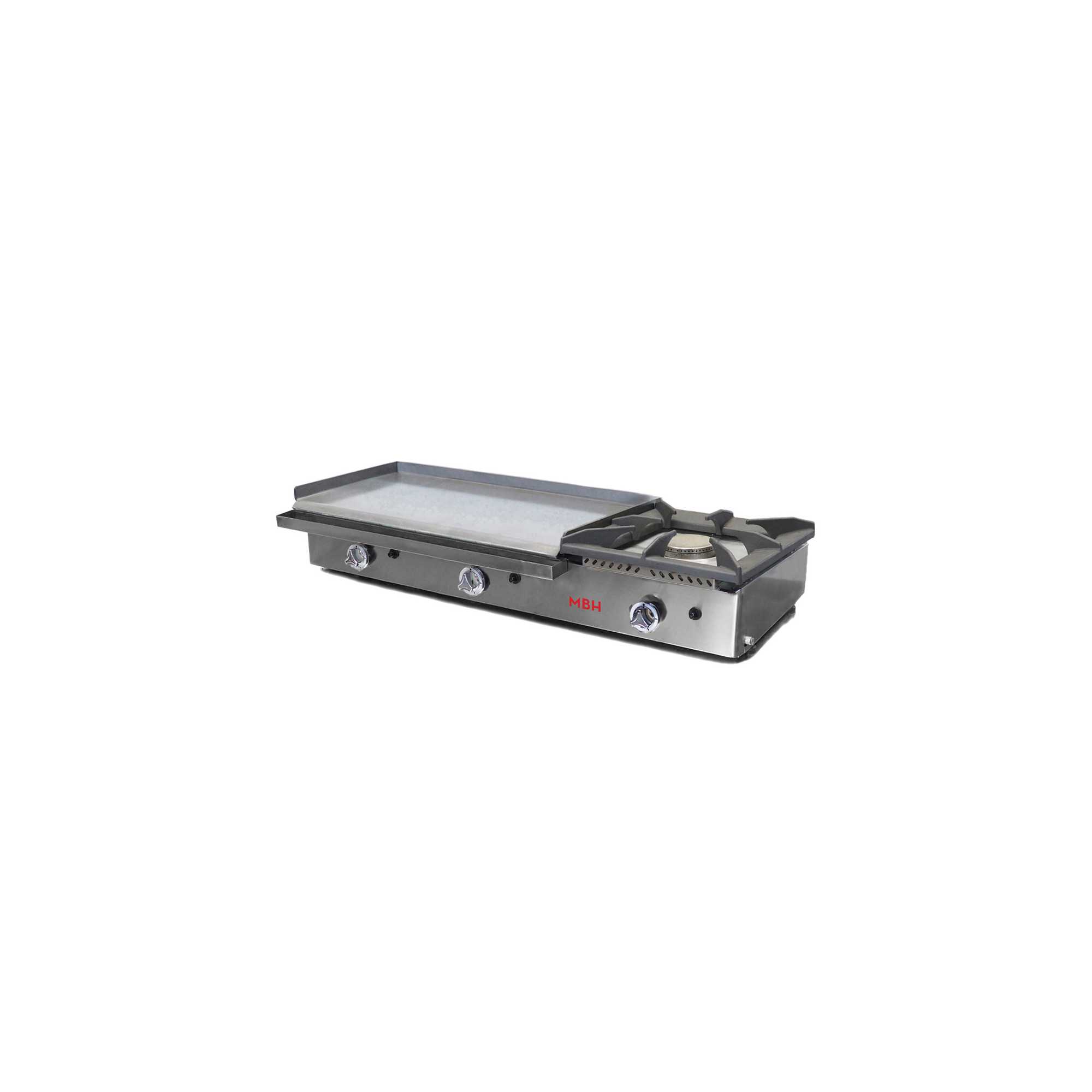

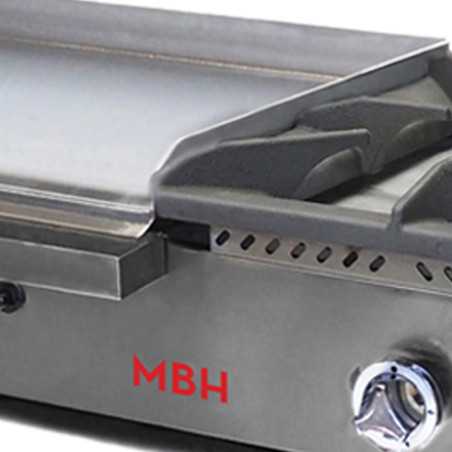

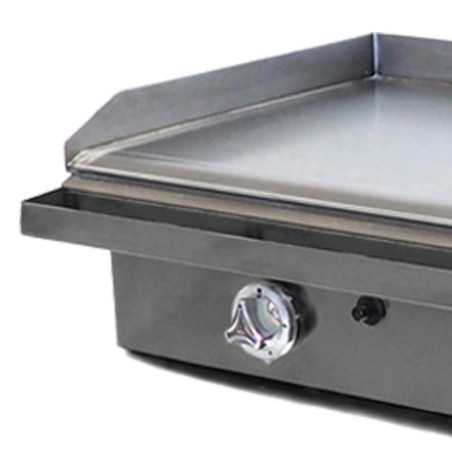

Professional industrial gas griddle 80 with stove

Griddles available in rolled steel, ground steel or hard chrome, 800x400 mm, with a stainless steel cabinet and rounded edges for easier cleaning.

GENERAL FEATURES

• Large-capacity front stainless steel grease tray, easy to remove.
• High-output “SABAF” burners with safety thermocouple.
• 143 g zinc metal control knobs with maximum/minimum indicator, smooth touch and always cool to the touch.
• Removable front panel for easier maintenance work.
• Height-adjustable feet.
• New system that makes injector replacement easier.
• Prepared for left-side gas connection.
• Set for butane gas, includes injectors for natural gas.
• With electric ignition component for easier lighting.
• High-output burner with safety thermocouple, 5.7 kW-gas.

ROLLED STEEL MODEL

• Removable plate for easier cleaning and maintenance.
• 6 mm thick monoblock steel plate with 36 mm splash guard and front diffuser.
• Polished rolled steel plate with anti-oxidation treatment during display/storage exposure.
• With cast iron grate rising above the splash guard, allowing pots and pans over 40 cm in diameter.
• The burner can be converted into a griddle.
• Fully removable burner for easy cleaning.

GROUND STEEL MODEL

• Removable plate for easier cleaning and maintenance.
• 10 mm ground plate, welded at the top to the rear and side splash guards, with front diffuser, thus preventing grease build-up and seepage between the plate and the splash guards.
• With anti-oxidation treatment during display/storage exposure.
• Rear and side splash guards made of 3 mm thick stainless steel.
• High-output burner with safety thermocouple, 5.7 kW-gas.
• With cast iron grate
• Deep-drawn removable stainless steel tray for easier cleaning and maintenance.
• With cast iron grate rising above the splash guard, allowing pots and pans over 40 cm in diameter.
• Fully removable burner for easy cleaning.

HARD CHROME MODEL

• 50-micron hard chrome plate, 10 mm thick, removable for better
• cleaning and maintenance.
• Welded at the top to the rear and side splash guards, with a front diffuser. This prevents grease build-up and seepage between the plate and the splash guards.
• Rear and side splash guards made of 3 mm thick stainless steel.
• With cast iron grate and deep-drawn removable stainless steel tray, to convert the burner into a griddle and make cleaning and maintenance easier.

TECHNICAL SPECIFICATIONS

• GRIDDLE PLATE SIZE: 800x400 mm
• VALVES: 3
• BURNERS: 3 (8.9 kW-Gas)
• OPEN BURNER: 1 (5.7 kW-Gas)
• TOTAL POWER: 14.60 kW-Gas
• OVERALL DIMENSIONS: 1210 x 472 x 233 mm (Width/Depth/Height)

ANTI-OXIDATION MAINTENANCE FOR ROLLED AND GROUND PLATES AFTER THE LAST USE

1. Clean the griddle while still hot to remove grease and dirt residues.

2. Rinse with water and remove all detergent thoroughly.

3. Heat the plate at maximum power for a few minutes until all moisture has completely evaporated, including the inner and outer sides.

4. Apply a generous layer of oil over the entire plate and sides using a clean cloth.

5. Cover the plate with newspaper soaked in oil to create a protective anti-oxidation layer until the next use.

Important: Only hard chrome plate griddles do not require this maintenance.

In case of oxidation, remove the rust with a metal scouring pad or pumice stone, clean when cold and repeat the entire process above.
