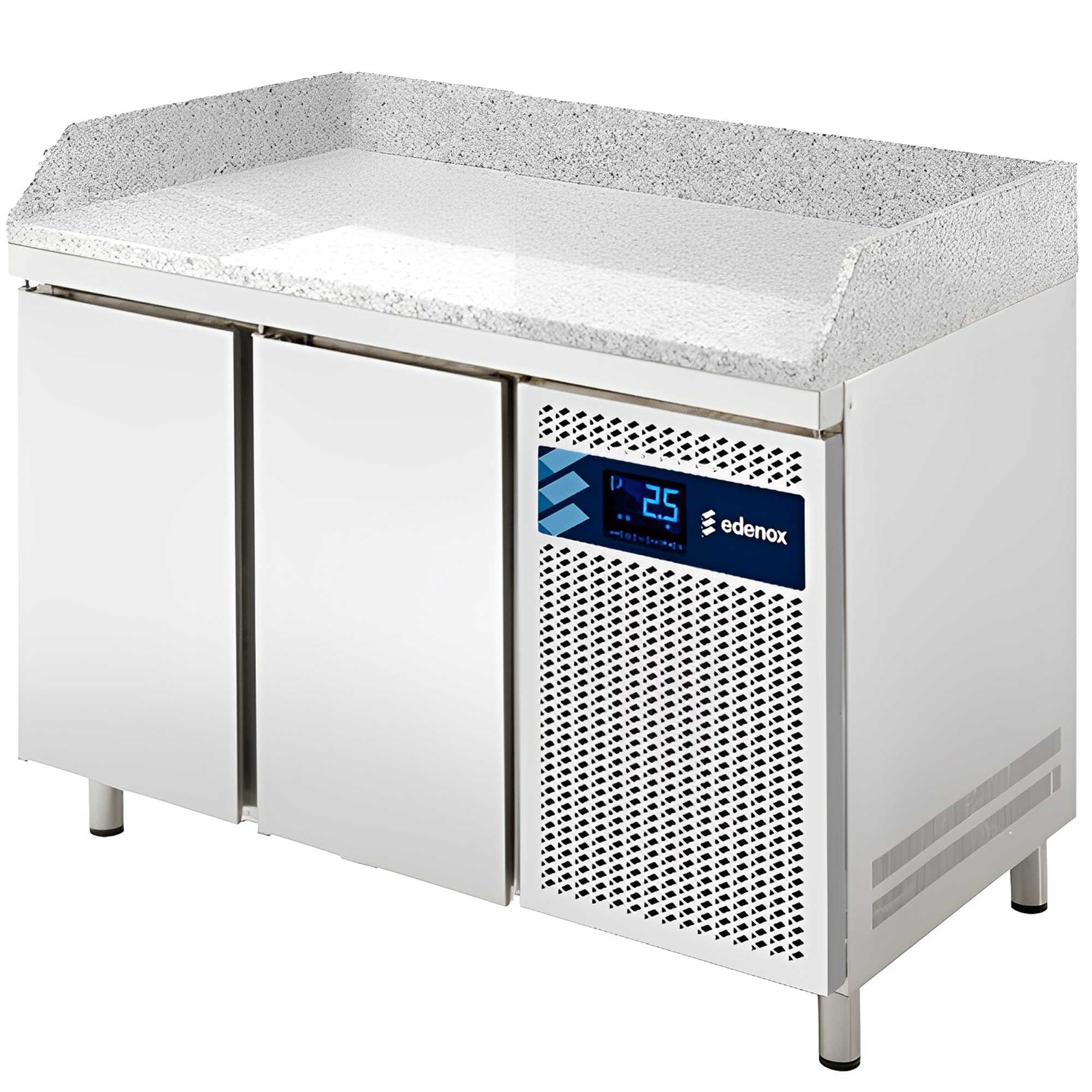

Industrial stainless steel refrigerated table GN 1/1 for pizzas

Gastronorm refrigerated counters for pizza preparation Series GN 1/1.

GENERAL CHARACTERISTICS

The composition of the complete tables is made by the set formed by:

• Refrigerated tables in the lower part.

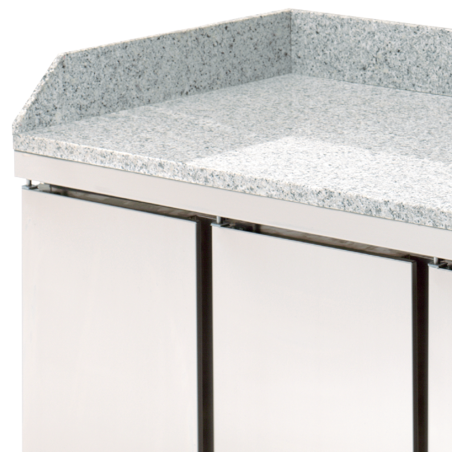

• Worktop and rear and side panels in granite.
• Fully injected compact structure with external panels in AISI-304 18/10 stainless steel.
• Inner body in AISI-304 18/10 stainless steel.
• Doors with built-in handle in AISI-304 18/10 stainless steel.
• Interior with curved joints for easy cleaning.
• Doors equipped with hinges with an automatic return system and opening fixation on the doors.
• Inlaid inner doors in AISI-304 18/10 stainless steel, to achieve greater insulation and robustness, with an easy-to-replace weatherstrip all around.
• Interior shelves of plasticized rods, partially removable for cleaning.
• Height-adjustable shelf support brackets.
• Height adjustable stainless steel feet.
• Control panel and engine ventilation grille with pivoting front opening.
• Hermetic condensing unit with ventilated condenser.
• Ecological refrigerant R-134 A CFC free.
• Forced draft evaporator with anti-corrosion coating.
• Automatic evaporation of defrost water.
• Injected polyurethane insulation, CFC free, with a density of 40Kg/m3.
• Illuminated start-stop switch.
• Electronic temperature control with digital display. Automatic defrost.
• Working temperature from -2° to +8°C with 38°C ambient temperature.
• Equipment: 1 GN 1/1 grill and two sets of guides per door.
• Working voltage: 230 V 1+N – 50 Hz.

TECHNICAL CHARACTERISTICS

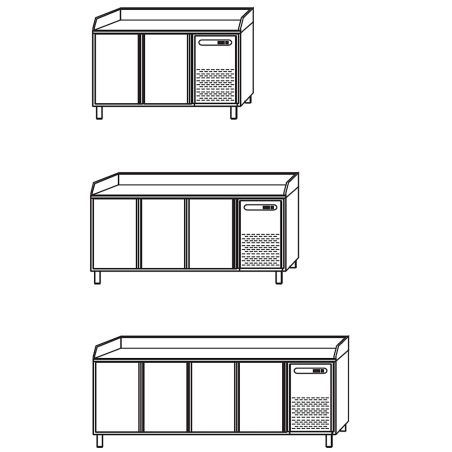

MPGP-135

• Measurements: 1342 x 700 x 850mm
• Doors: 2
• Volume: 290L
• Power: 1018W
• Compressor (HP): 1/5

MPGP-180

• Measurements: 1792 x 700 x 850mm
• Doors: 3
• Volume: 455L
• Power: 1119W
• Compressor (HP): 1/4

MPGP-225

• Measurements: 2242 x 700 x 850mm
• Doors: 4
• Volume: 615L
• Power: 1920W
• Compressor (HP): 1/4
