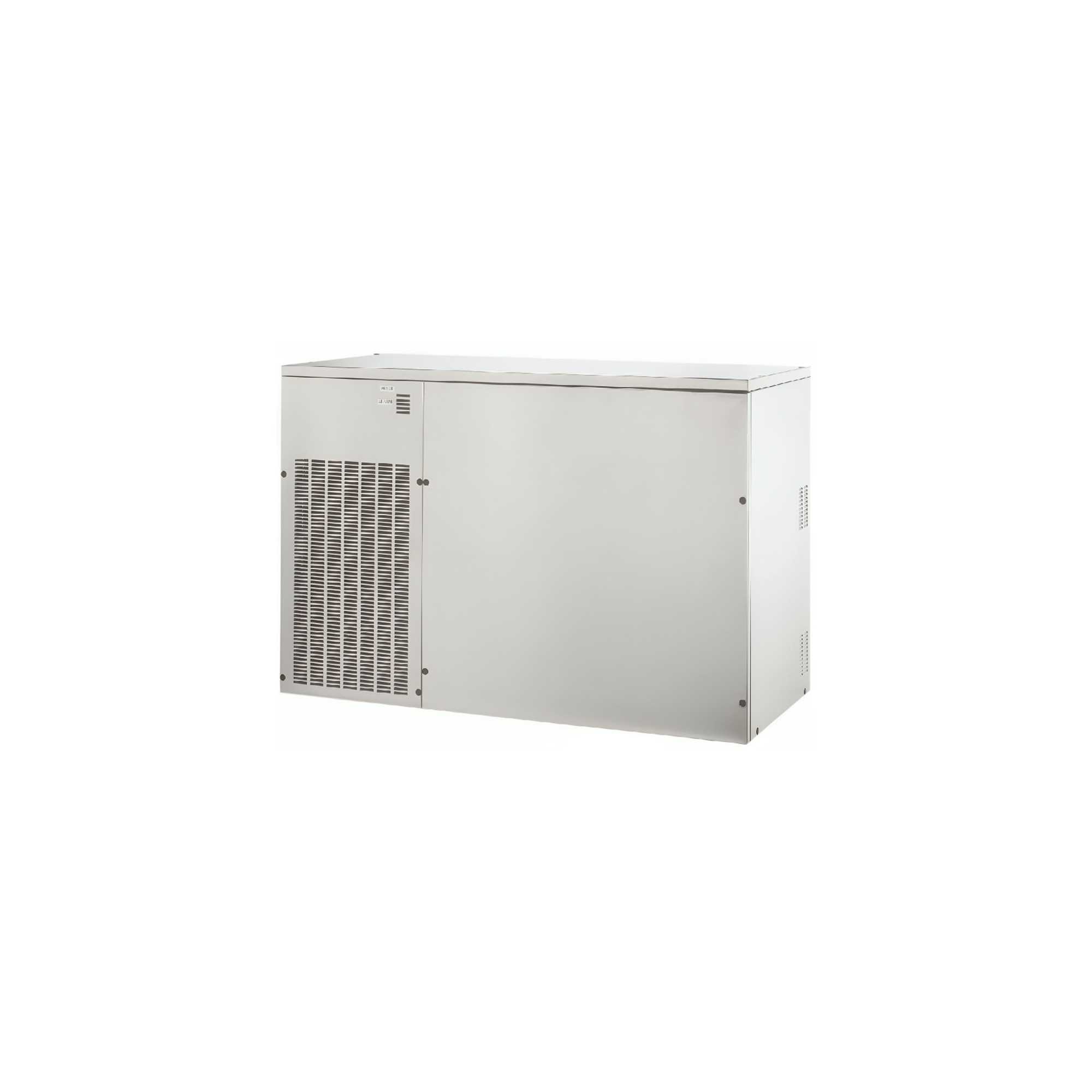

ICE CUBE: The ice for experts, with a harmonious sound when it hits the glass. Appreciated for its elegant, attractive appearance and its high performance. It adapts to the shape of all glasses, icy, crystalline, transparent...

GENERAL CHARACTERISTICS

• Aisi 304 stainless steel exterior, stainless steel monoblock bodywork with high-pressure injected polyurethane insulation, CFC-free.
• ABS food container. Tinned evaporator.
• Ice manufacturing system by injection using metal diffusers with a reinforced section, and easily removable, to allow a large passage of water and reduce the effects caused by hard water.
• Production with room temperature at +21 ºC and water at +15 ºC.
• Door, exterior in stainless steel.
• Voltage: 1x230 V./50 Hz. (possibility of special voltages).
• Measurements without legs, adjustable leg height 110-150 mm.
• Water inlet Ø ¾ and outlet Ø 24 mm.

TECHNICAL CHARACTERISTICS

• PRODUCTION (KG/24H): 300
• NO. OF CUBES PER CYCLE: 140
• DIMENSIONS WITHOUT LEGS (MM): 1250 x 580 x 848
• CONDENSATION: A-W
• CUBE TYPE (G): 42
• ASK FOR 13G / 18G / 33G / 63G CUBES OPTION
• POWER (W): 2600
• DOES NOT INCLUDE DEPOSIT, THEY ARE SOLD SEPARATELY IN THE UPPER DEPLOYMENT

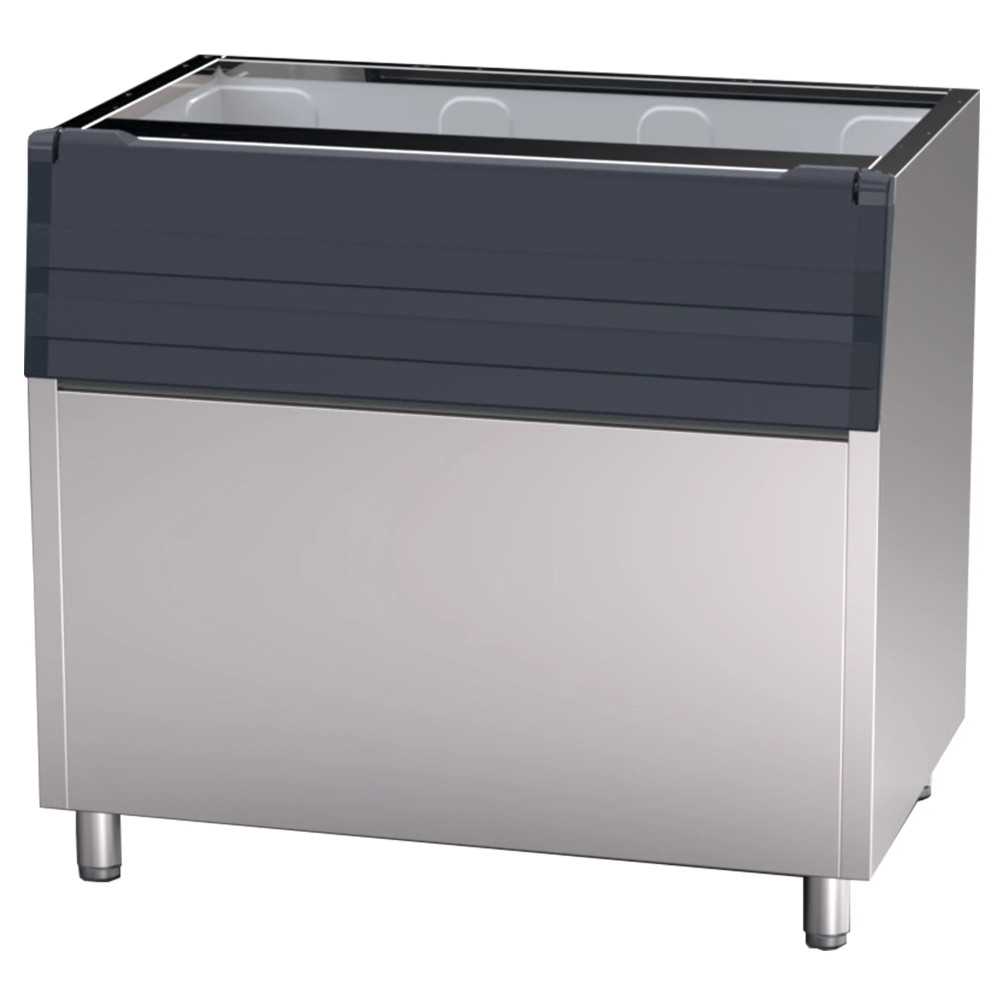

TANKS FOR THE ICE MACHINE

BIN 350

• CONTAINER CAPACITY (KG): 350
• DIMENSIONS WITHOUT LEGS (MM): 1250 x 790 x 1000
• STRUCTURE IN STAINLESS STEEL 18/8.
• HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
• INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.
