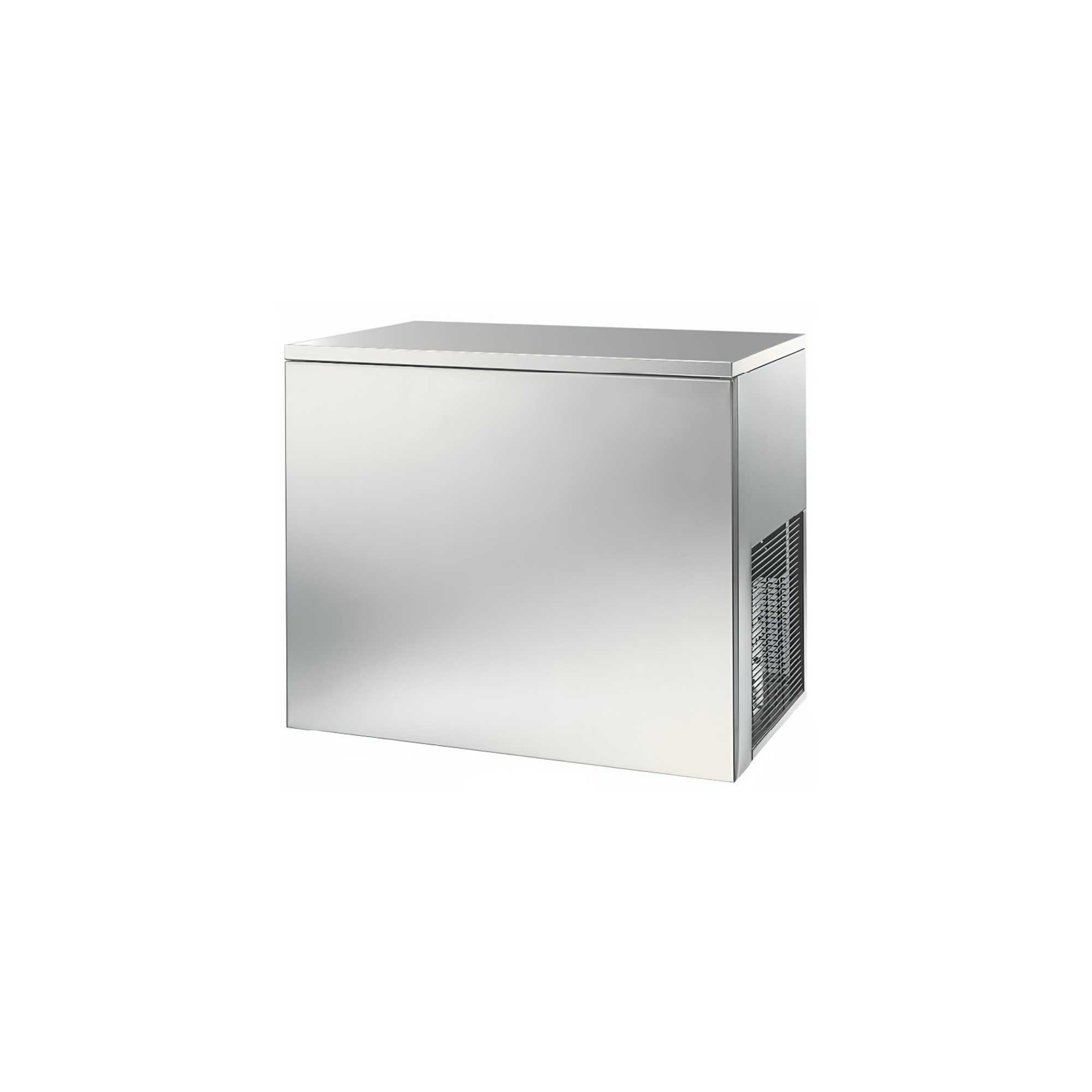

ICE CUBE: The ice for experts, with a harmonious sound when it hits the glass. Appreciated for its elegant, attractive appearance and its high performance. It adapts to the shape of all glasses, icy, crystalline, transparent...
GENERAL CHARACTERISTICS
- Aisi 304 stainless steel exterior, stainless steel monoblock bodywork with high-pressure injected polyurethane insulation, CFC-free.
- ABS food container. Tinned evaporator.
- Ice manufacturing system by injection using metal diffusers with a reinforced section, and easily removable, to allow a large passage of water and reduce the effects caused by hard water.
- Production with room temperature at +21 ºC and water at +15 ºC.
- Door, exterior in stainless steel.
- Voltage: 1x230 V./50 Hz. (possibility of special voltages).
- Measurements without legs, adjustable leg height 110-150 mm.
- Water inlet Ø ¾ and outlet Ø 24 mm.
TECHNICAL CHARACTERISTICS
- PRODUCTION (KG/24H): 155
- NO. OF CUBES PER CYCLE: 70
- DIMENSIONS WITHOUT LEGS (MM): 862 x 555 x 720
- CONDENSATION: A-W

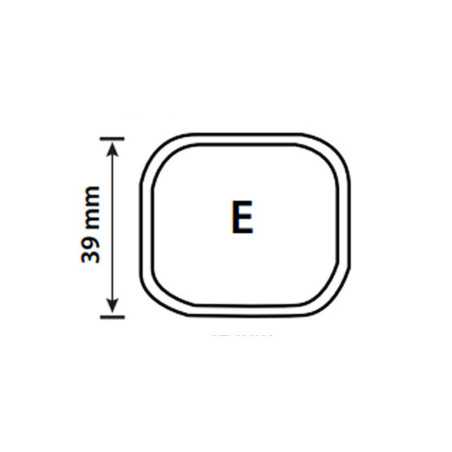

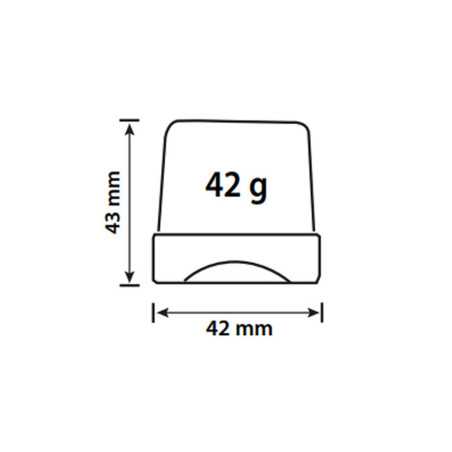

- CUBE TYPE (G): 42
- ASK FOR 13G / 18G / 33G / 63G CUBES OPTION
- POWER (W): 1400
- DOES NOT INCLUDE DEPOSIT, THEY ARE SOLD SEPARATELY IN THE UPPER DEPLOYMENT
TANKS FOR THE ICE MACHINE
BIN 240 PE
- CONTAINER CAPACITY (KG): 240
- DIMENSIONS WITHOUT LEGS (MM): 942 x 795 x 1053
- BUILT IN STAMPED POLYETHYLENE.
- HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
- INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.
BIN 200
- CONTAINER CAPACITY (KG): 200
- DIMENSIONS WITHOUT LEGS (MM): 870 x 790 x 1000
- STRUCTURE IN STAINLESS STEEL 18/8.
- HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
- INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.
BIN 350
- CONTAINER CAPACITY (KG): 350
- DIMENSIONS WITHOUT LEGS (MM): 1250 x 790 x 1000
- STRUCTURE IN STAINLESS STEEL 18/8.
- HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
- INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.
