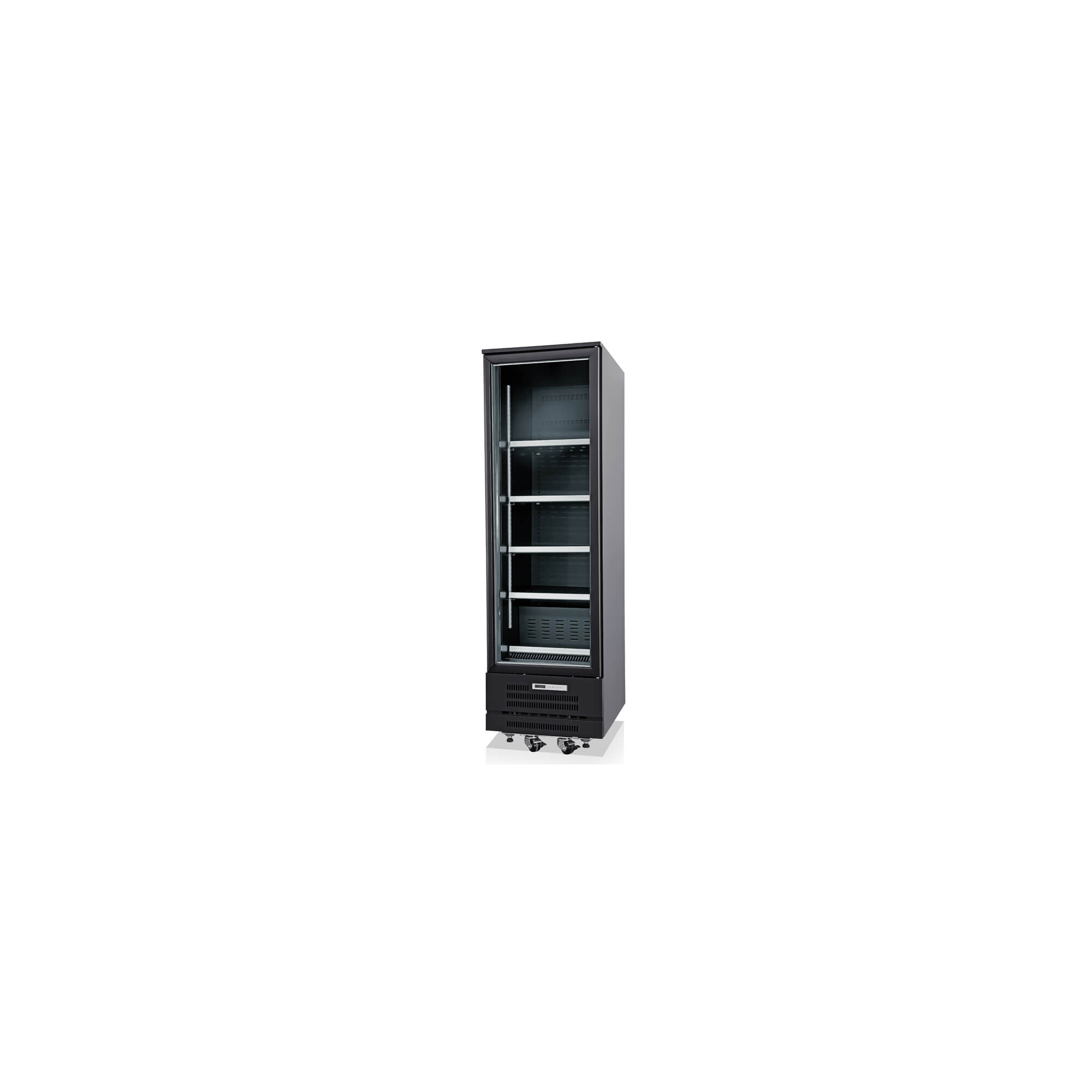

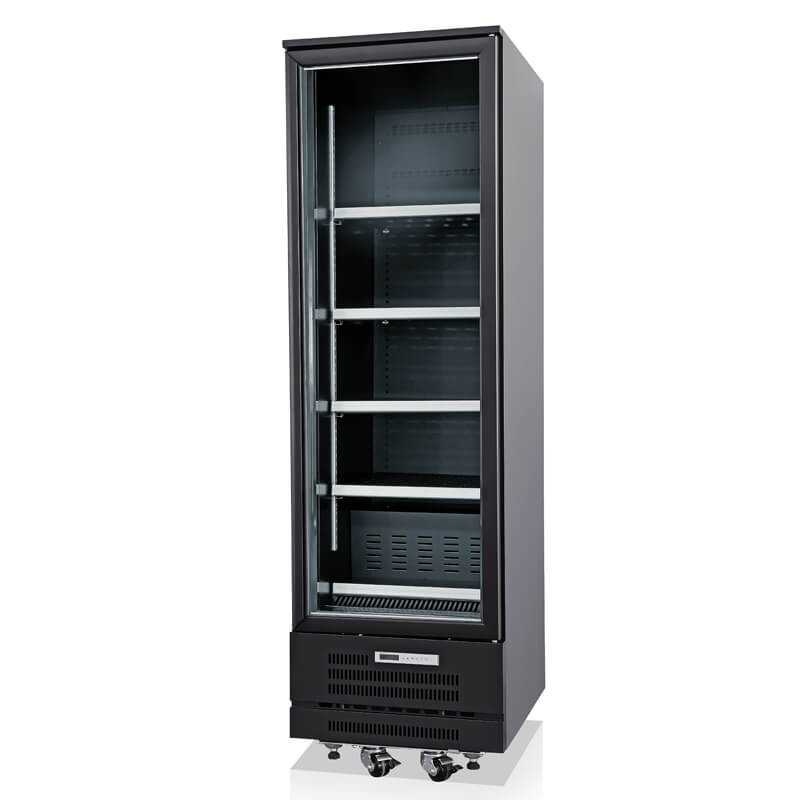

VESU vertical murals have been designed to integrate perfectly with each other. This means that they can be freely combined with each other, using equipment with 1, 2 or 3 doors together or separately, either in freezing or refrigeration.
With this design we can make the most of the available space, without compromising the aesthetics of the premises or energy efficiency. We are in front of an ideal range for small supermarkets and convenience stores, where the available space and customer traffic require efficient and durable equipment. Equipment that increases the sales of your premises.
The design of the showcase is based on 3 concepts:
Maximum flexibility: it allows refrigeration and freezing units to be combined indistinctly, under the same aesthetic, which increases all the possibilities of implementation at the point of sale.
Design for food display: Maximum interior visibility. Robust shelves to support product weight. Excellent led lighting to enhance the product on display. Continuous handle along the entire door.
Performance: It is a wall cabinet designed to maintain the temperature with continuous door openings. Electronic control. The distribution of the cold is carried out uniformly throughout the cabinet, both on the back and on the top. This allows temperature uniformity throughout the cabinet, even in areas with high foot traffic.
GENERAL CHARACTERISTICS
- Comprehensive insulation, with air circulation design that prevents cold air from flowing out of the wall cabinet, thus the cooling effect is perfect and energy consumption is efficient.
- Cold distribution system integrated throughout the cabinet, from the bottom of the cabinet, back and top, which maximizes temperature homogeneity, minimizing energy losses and the appearance of steam.
- 680mm insulation thickness for efficient energy consumption.
- They allow them to be freely combined, using equipment with 1, 2 or 3 doors together or separately, either in freezing or refrigeration, since the aesthetics are the same between them, which gives visual continuity to the whole.
- Maximum product visibility and high load capacity. black colour.
- 40mm price holder for shelves and display.
- Vertical LED lighting on the frame.
- High efficiency fans.
- Hinged triple glass doors for freezing and double glass for refrigeration.
- Tempered and low-e glass.
- Doors with automatic closing and fixed anchorage to facilitate the replacement of the product.
- Auto defrost and auto evaporation condenser tray.
- Exterior and doors in black.
- Includes legs and wheels.
- 4 rows of 500 mm wide reinforced solid shelves, made of black painted sheet metal (extra shelves available). 4 shelves per door are supplied as standard. These shelves are designed for beverage and food presentation, ideal for supermarkets and convenience stores.
- Digital thermometer, temperature control and automatic defrost.
- Ecological refrigerant R290.
- Working voltage: 230 V / 50 Hz.
TECHNICAL CHARACTERISTICS
MODEL: VESUR-401-C
- Dimensions (mm): 600 x 760 x 2000
- Capacity (l): 450
- Power (W): 240
- Shelves dimensions (mm): 445 x 450
- Number of doors: 1
- Temperature: +2 / +8ºC
MODEL: VESUC-401-C
- Dimensions (mm): 600 x 760 x 2000
- Capacity (l): 450
- Power (W): 700
- Shelves dimensions (mm): 445 x 450
- Number of doors: 1
- Temperature: -15 / -20ºC
MODEL: VESUR-902-C
- Dimensions (mm): 1200 x 760 x 2000
- Capacity (l): 1020
- Power (W): 400
- Shelves dimensions (mm): 510 x 450
- Number of doors: 2
- Temperature: +2 / +8ºC
MODEL: VESUC-902-C
- Dimensions (mm): 1200 x 760 x 2000
- Capacity (l): 1020
- Power (W): 1050
- Shelves dimensions (mm): 510 x 450
- Number of doors: 2
- Temperature: -15 / -20ºC
MODEL: VESUR-1603-C
- Dimensions (mm): 1800 x 760 x 2000
- Capacity (l): 1600
- Power (W): 800
- Shelves dimensions (mm): 530 x 450
- Number of doors: 3
- Temperature: +2 / +8ºC
MODEL: VESUC-902-C
- Dimensions (mm): 1800 x 760 x 2000
- Capacity (l): 1600
- Power (W): 1800
- Shelves dimensions (mm): 530 x 450
- Number of doors: 3
- Temperature: -15 / -20ºC
