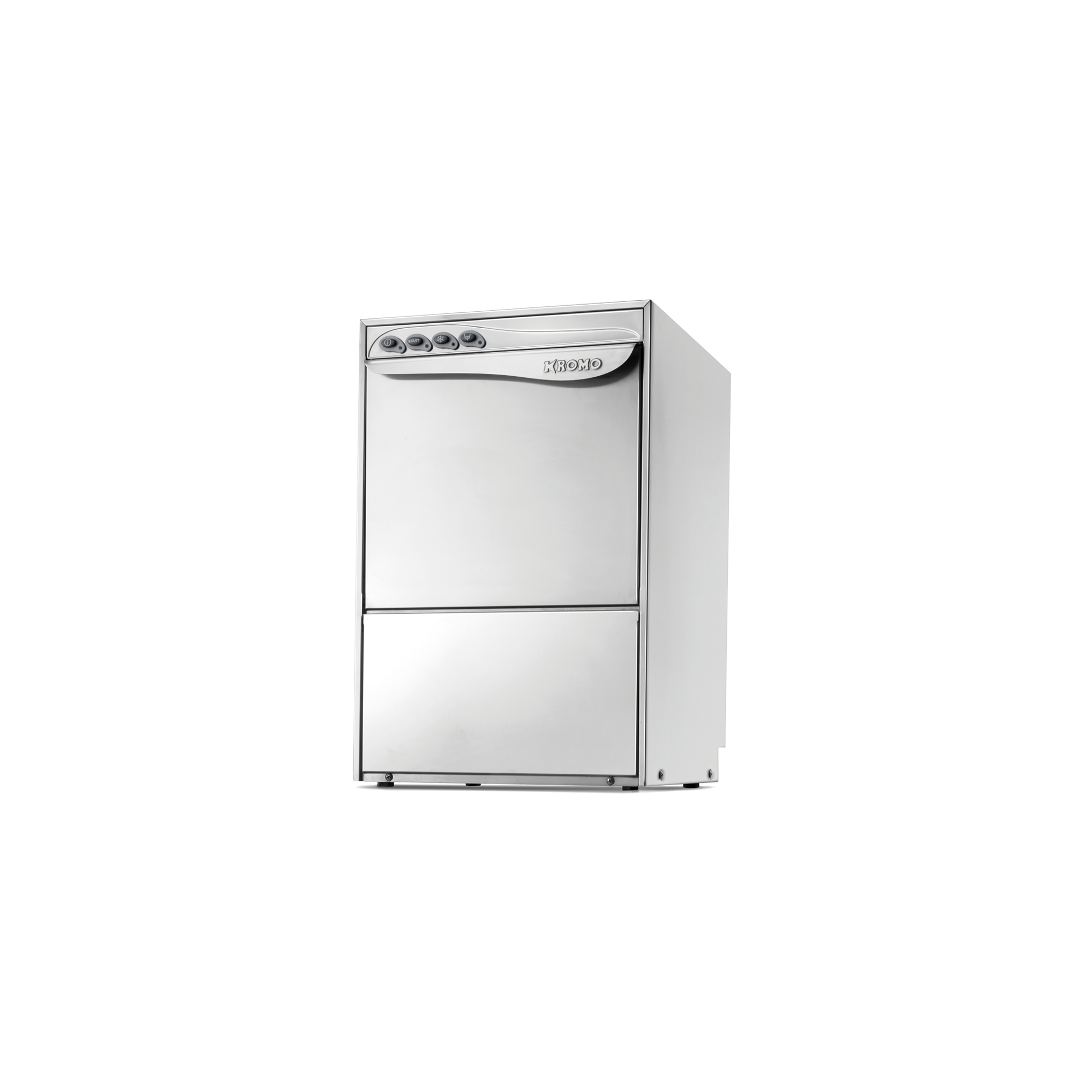

Industrial Dishwasher 40 double wall

Dishwashers upper wash.
body with double walled stainless steel AISI 304. Supports baskets
prints.
security mechanism in the door opening.
Cuba stamped and inclined for a complete drain.
drain with integrated overflow and pump protection triple washing system.
inclined to ensure the hygiene of the dishes roof.
DUPLA35 / 37/40 / 45 arm washing and rinsing polypropylene ensure optimum results although the mains pressure is low
DUPLA50. arm stainless steel washing and rinsing arms indipendent
the sprinklers. removable arms in polypropylene without problems facilitate daily cleaning.
Valve to prevent contamination of the water supply.
rinse dispenser (request peristaltic version).
Thermostop rinsing system allowing only if the water temperature in the boiler reaches 85 ° C. < br /> surface filters available (on request only DUPLA50 and DUPLASOT).
electronic version 3 cycles preinstalled.
complete electronic version with descaling (on request) indicator lack of salt.
glasswasher also available with round baskets (DUPLA35 / 37/40).

DUPLA 40 LS

295 H - 360 / hr

305 H - 480 / hr

Baskets / time: n.
30 wash Cycles: 120 sec
voltage: 230V / 50H
wash pump: 400 W
Resistance boiler: 2800 W
Cuba Resistance: 1850 W
Total Absorption Capacity 3200 W
Cuba: 15.5 reboiler lt
Capacity: 3,4 lt
water consumption: 1.8 Dimensions lt
basket: 400 x
400 mm Dimensions: 460 x 545 x 715 mm

br /> calderín Resistance: 2800 W
Cuba Resistance: 1850 W
Total absorption: 3200 W
Cuba Capacity: 15.5 lt
calderín Capacity: 3.4 lt
water consumption: 1.8 Dimensions lt
basket: 400 x 400 mm
Dimensions: 460 x 545 x 715 mm br /> calderín Resistance: 2800 W
Cuba Resistance: 1850 W
Total absorption: 3200 W
Cuba Capacity: 15.5 lt
calderín Capacity: 3.4 lt
water consumption: 1.8 Dimensions lt
basket: 400 x 400 mm
Dimensions: 460 x 545 x 715 mm
