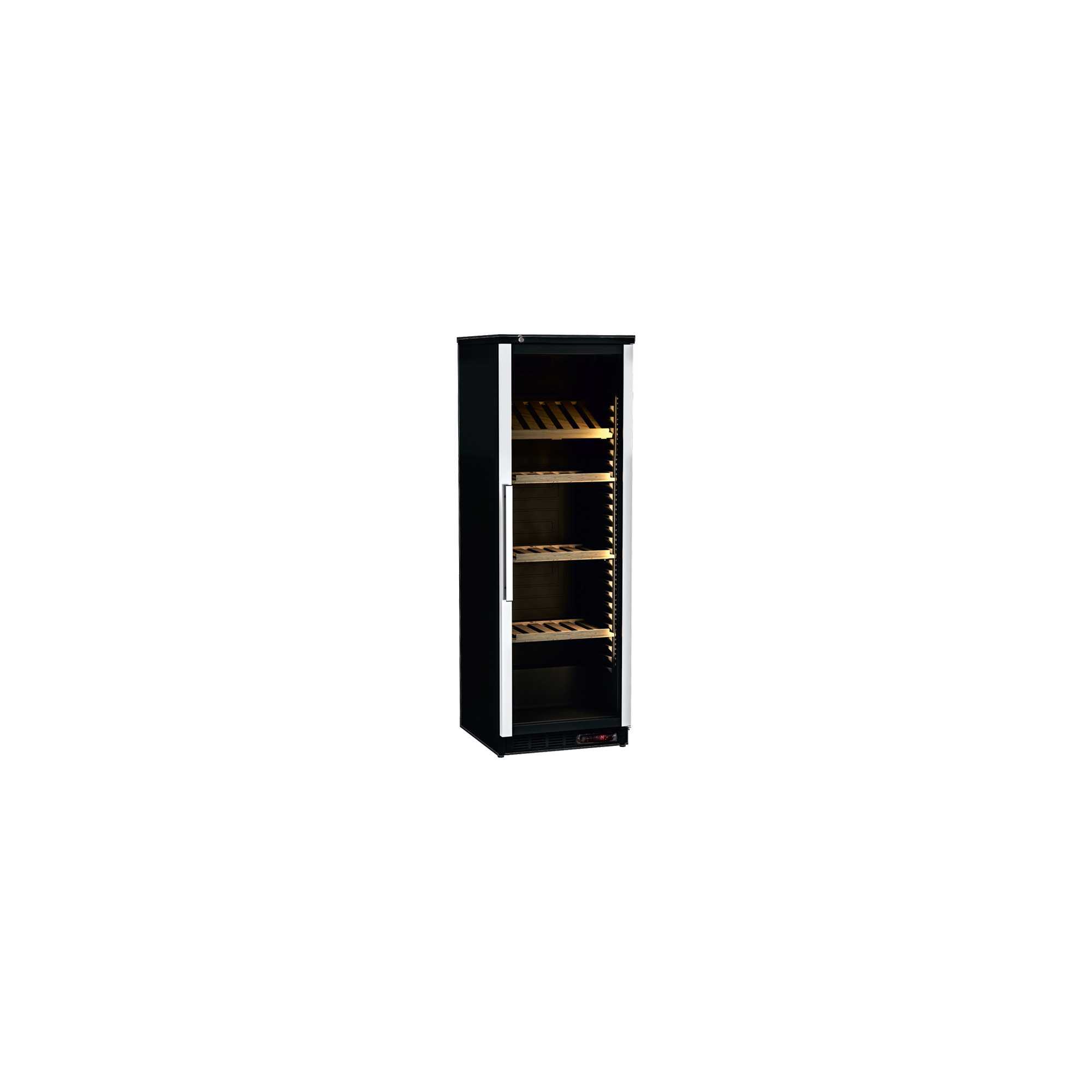

Professional wine display cabinet wooden shelves

Large capacity wine cellar with temperature zones with controlled wooden shelves to display the wine for regular consumption in a leisure and restaurant establishment.

GENERAL CHARACTERISTICS

• They have a design in which the finishes and details have been taken care of to offer an elegant, modern and high-quality exhibitor sensation.
• Specially designed for the exhibition and conservation of wines, elegant design with glass door with aluminum frame.
• Wooden shelves mounted on guides that facilitate their extraction even when bottles are loaded. The shelves can be removed to make other display compositions.
• Interior LED lighting that favors the conservation and properties of the wine.
• Equipped with a lock that guarantees the safety of the product.
• 3 Injected polyurethane insulation with a density of 40 Kg/m.
• Forced draft cooling system.
• Double tinted glass door with ultraviolet filter that protects the wine from the sun's rays.
• Working temperature from +5 to +16°C in an environment of 32°C.
• Electronic and digital temperature control.
• Defrost with digital display.
• Evaporating plate with internal forced ventilation.
• Low maintenance condenser with forced ventilation on the outside.
• Exterior in pre-lacquered sheet steel.
• Interior in black sanitary thermoforming.
• Interior guides embedded in polystyrene.
• R600a refrigerant.
• Capacity for 72 bottles of 75 cl. The maximum capacity with 9 horizontal shelves is 117 bottles of 75 cl.
• Equipped with 3 flat shelves and 1 inclined shelf for displaying prominent bottles or keeping open bottles.
• Energy class: E.

(*) Consult the option of additional flat and inclined wooden shelves.

TECHNICAL CHARACTERISTICS

• Shelves: 3+1
• Capacity (L): 400
• Temperature (ºC): +5 / +16
• Power (W): 202
• Consumption (kWh/24h): 2.49
• Inside dimensions (mm): 525x512x1647
• External dimensions (mm): 620x655x1850
