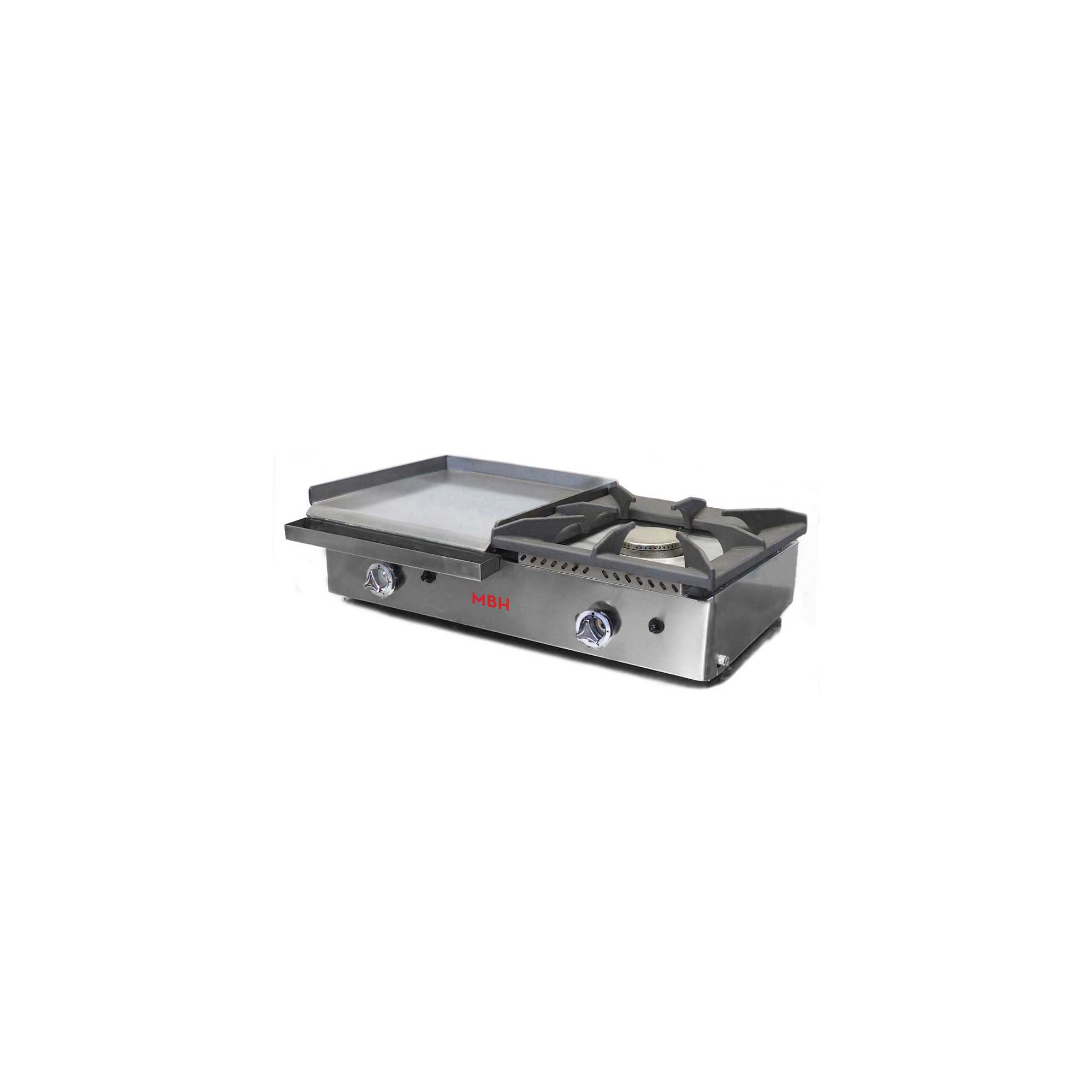

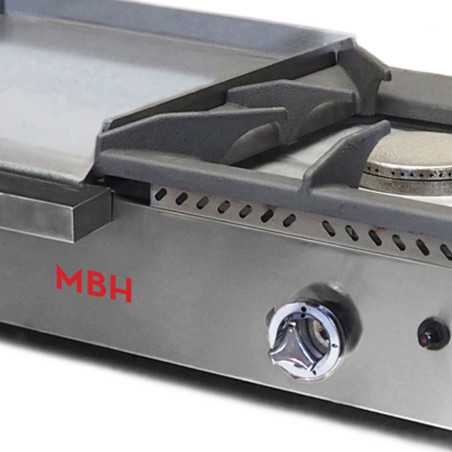

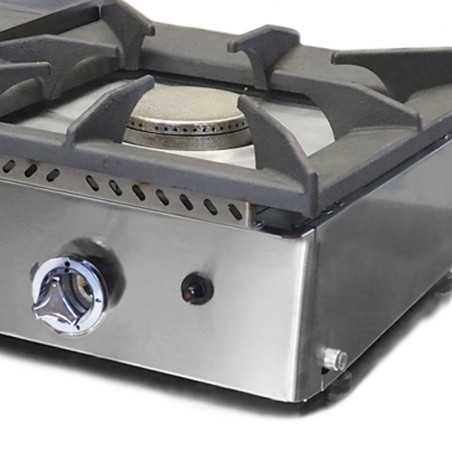

Professional industrial gas griddle 40 with stove

Plates available in laminated steel or hard chrome, 400x400 mm, with stainless steel cabinet and rounded edges for easy cleaning.

GENERAL CHARACTERISTICS

• Large capacity and easy to remove stainless steel front grease fitting.
• “SABAF” burners with high calorific power with safety thermocouple.
• Zinc metal controls of 143 grams, with maximum/minimum marker. soft touch and always cold.
• Removable front panel to facilitate maintenance work.
• Height adjustable feet.
• New system, which facilitates the change of injector.
• Prepared for left take.
• Prepared for Butane Gas, includes injectors for natural gas.
• With electric part to facilitate ignition.
• Stove with safety thermocouple of great calorific power 5.7 kw-gas.

ROLLED STEEL MODEL

• Removable plate for easy cleaning and maintenance.
• Monobloc steel plate 6 mm thick with 36 mm backsplash and front diffuser.
• Polished rolled steel plate with anti-oxidation treatment for the duration of its exposure.
• With a cast iron grill that exceeds the height of the plate breastplate to be able to place containers of more than 40 centimeters in diameter.
• The stove can be transformed into a griddle.
• Fully removable stove for cleaning.

HARD CHROME MODEL

• 50 micron 10mm hard chrome plate, removable for better
• cleaning and maintenance.
• Welded at the top to the rear and side bumpers, and a diffuser at the front. This prevents the accumulation and filtering of fat between the plate and the bibs.
• Backsplash and sides made of 3 mm thick stainless steel.
• With a cast-iron grill and an embedded and removable stainless steel tray, to convert the stove into a griddle and to facilitate cleaning and maintenance tasks.

TECHNICAL CHARACTERISTICS

• PLATE MEASUREMENTS: 400x400 mm
• VALVES: 2
• BURNERS: 1 (3.2 kW-Gas)
• STOVE: 1 (5.7 kW-Gas)
• TOTAL POWER: 8.9 kW-Gas
• TOTAL MEASUREMENTS: 810 x 472 x 233 mm (Width/Depth/Height)
