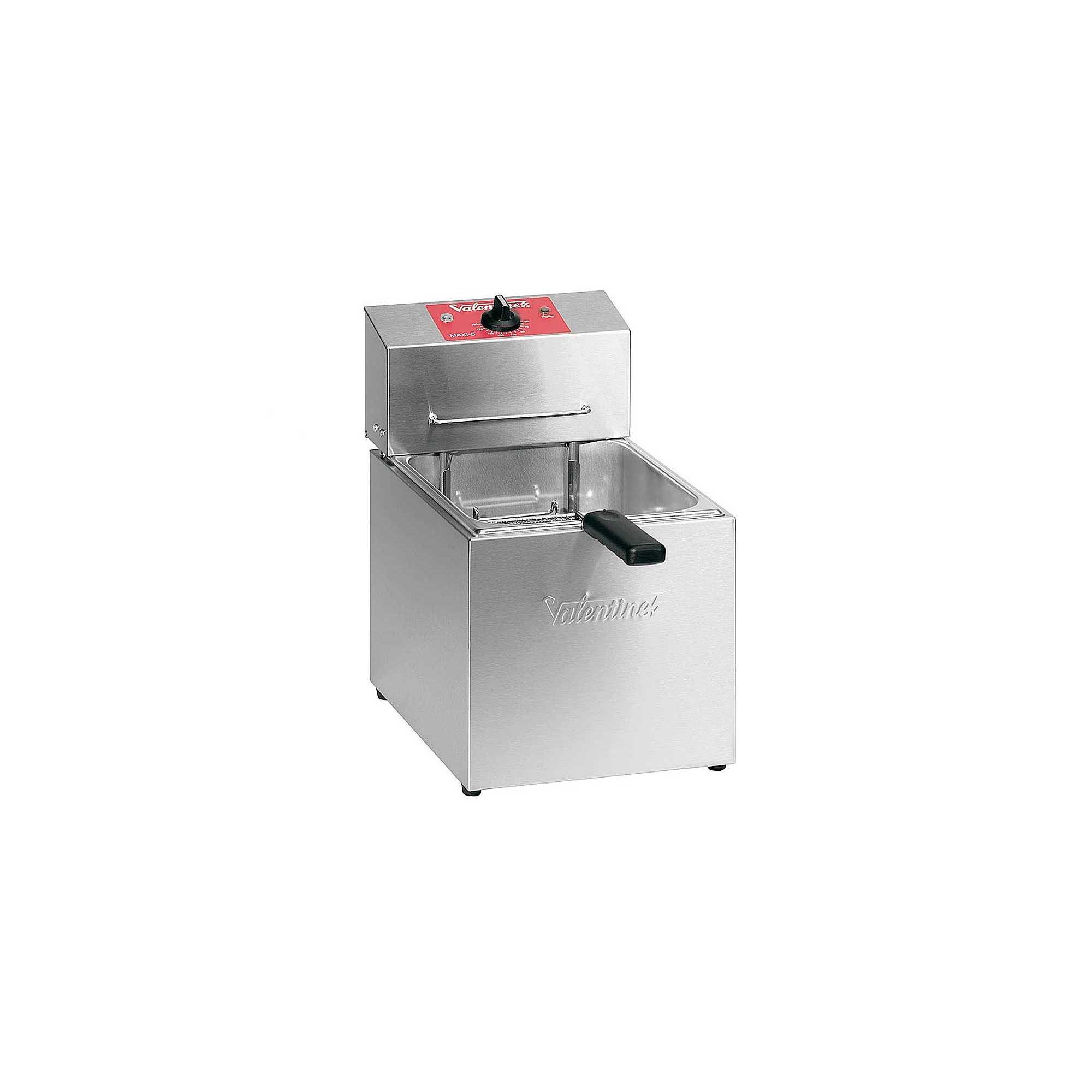

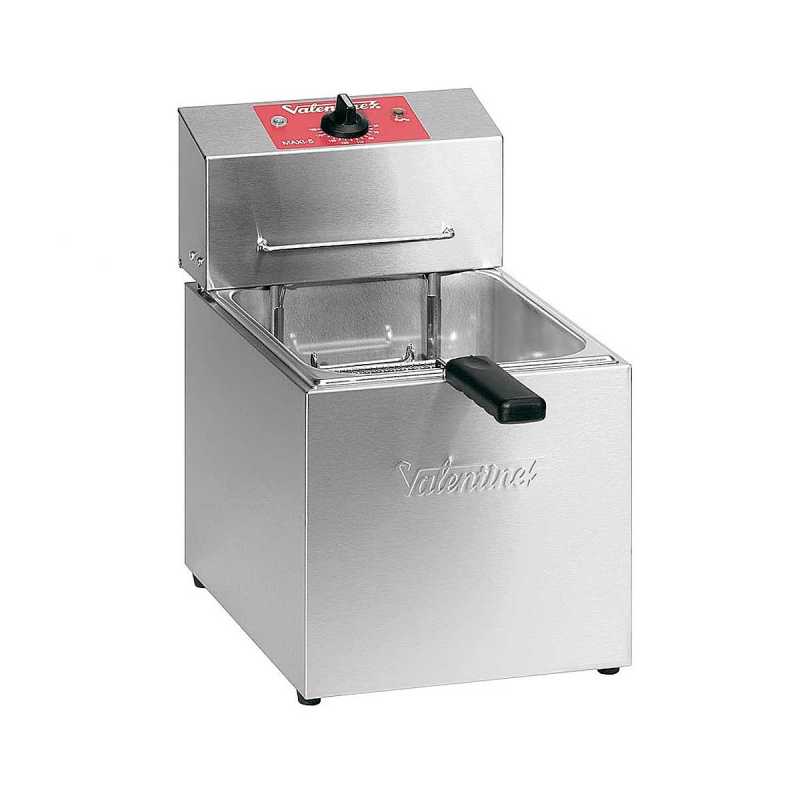

Valentine TF Series 1-Basket Fryers

GENERAL CHARACTERISTICS

• Stainless steel construction.

• Well embedded in one piece, without welds, with rounded corners.

• With drain cock (except TF-3 model).

• Removable chassis and bowl to facilitate cleaning.

• Dialog system for maximum performance (except TF-3 model).

• Safety thermostat with reset button.

TECHNICAL CHARACTERISTICS

MODEL: TF-3

• Fryer dimensions: 200 x 390 x 180-310
• Basket dimensions: 155 x 235 x 105

• Capacity (liters): 3
• Power (kw): 3

• Voltage / Phases: 1 x 230

• Production (kg / h): 6

MODEL: TF-5

• Fryer dimensions: 213 x 415 x 265-420

• Basket dimensions: 155 x 235 x 105

• Capacity (liters): 4/5

• Power (kw): 3.6

• Voltage / Phases: 1 x 230

• Production (kg / h): 8

MODEL: TF-7

• Fryer dimensions: 280 x 415 x 265-420

• Basket dimensions: 220 x 235 x 108

• Capacity (liters): 5.5 / 7

• Power (kw): 3.6

• Voltage / Phases: 1 x 230

• Production (kg / h): 8

MODEL: TF-10

• Fryer dimensions: 360 x 415 x 265-420

• Basket dimensions: 305 x 235 x 108

• Capacity (liters): 8/10

• Power (kw): 6.9

• Voltage / Phases: 3 x 400 v + N

• Production (kg / h): 14

MODEL: TF-5T

• Fryer dimensions: 213 x 415 x 265-420

• Basket dimensions: 155 x 235 x 105

• Capacity (liters): 4/5

• Power (kw): 3.6

• Voltage / Phases: 2 x 400

• Production (kg / h): 8

MODEL: TF-7T

• Fryer dimensions: 280 x 415 x 265-420

• Basket dimensions: 220 x 235 x 108

• Capacity (liters): 5.5 / 7

• Power (kw): 4.6

• Voltage / Phases: 2 x 400

• Production (kg / h): 10

MODEL: TF-13

• Fryer dimensions: 560 x 415 x 265-420

• Basket dimensions: 500 x 235 x 108

• Capacity (liters): 12.5 / 14

• Power (kw): 6.9

• Voltage / Phases: 3 x 400 + N

• Production (kg / h): 14
