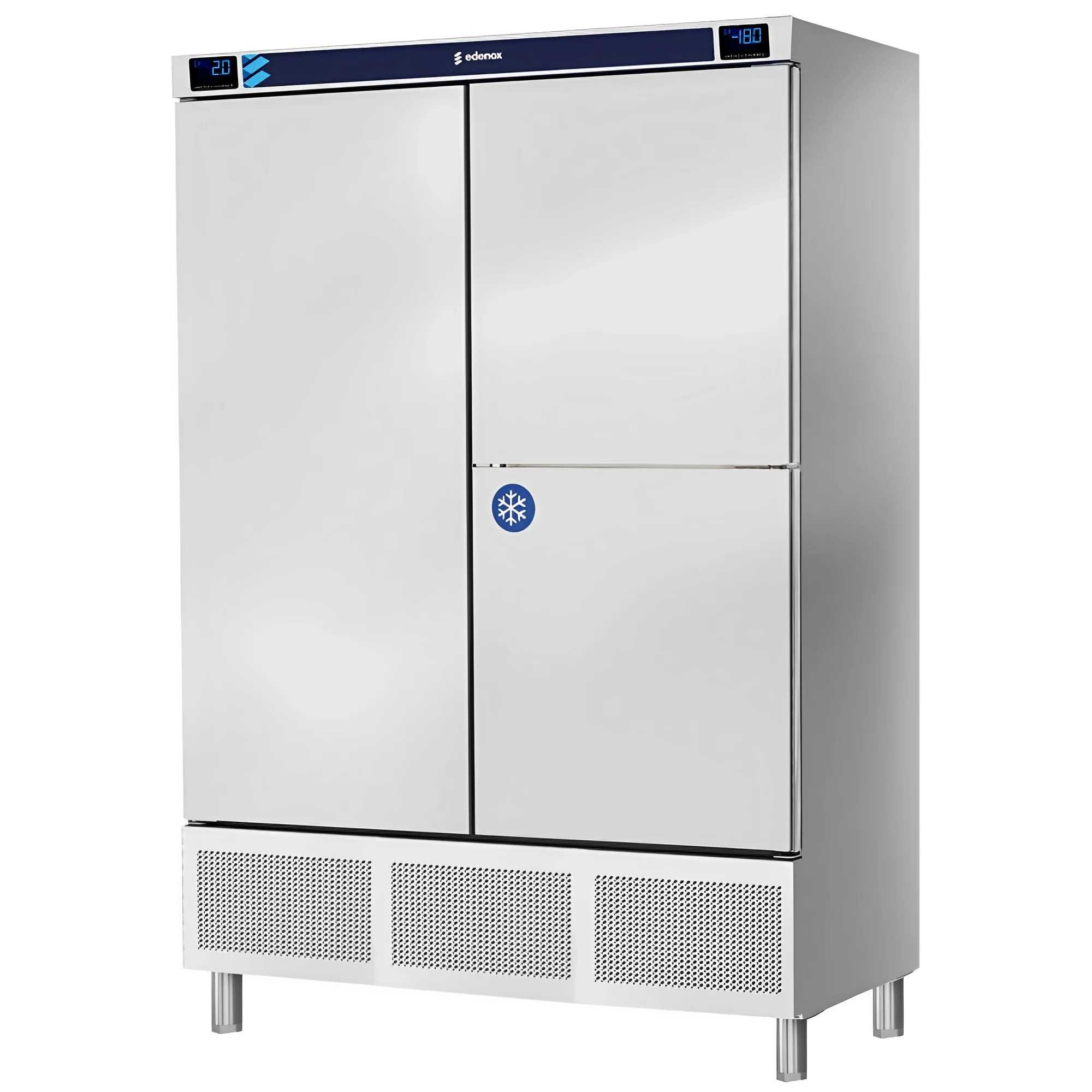

Refrigerated cabinet 651 L stainless steel with 3 doors and fish compartment

The GN 1/1 refrigerated cabinet 651 L with 3 doors and dedicated fish compartment is designed for industrial kitchens, fishmongers, and professional food storage environments. With a stainless steel structure and a fully isolated drawer system for fish or frozen products, it ensures safe and efficient operation with independent temperature control.

GENERAL FEATURES

• Fully injected body with stainless steel exterior and interior.
• Curved internal joints for easy and hygienic cleaning.
• Doors with integrated handle, automatic return hinges and stay-open system.
• Interior LED lighting and drainage connected to the network.
• Removable plastic-coated wire shelves for quick cleaning.
• Height-adjustable stainless steel feet.

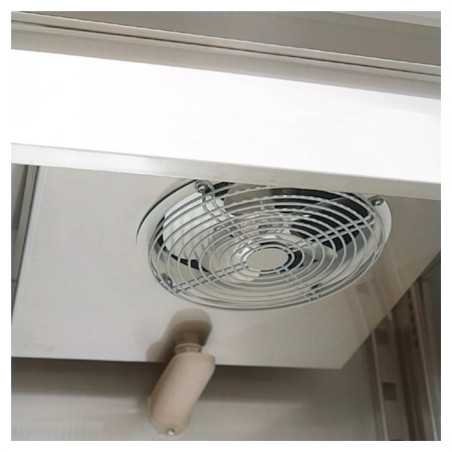

• Forced-air evaporator with anti-corrosion coating.
• Eco-friendly R-290 refrigerant, CFC-free.
• High-density injected polyurethane insulation (40 kg/m³), CFC-free.
• Large-format digital controller with automatic defrost and light control.
• Visual and acoustic open door alarm.
• Optional locking system available on request.

FISH COMPARTMENT FEATURES

• Fully isolated drawer compartment with independent condenser and thermostat.
• Static evaporator for optimal fish preservation.
• Includes 3 food-grade PVC drawers on stainless steel rails.
• Working temperature: -4 ºC to +2 ºC (with 30 ºC ambient).

TECHNICAL SPECIFICATIONS

• Model type: Vertical refrigerated cabinet with fish compartment
• GN compatibility: GN 1/1
• Net capacity: 651 L
• Number of doors: 3
• Main temperature range: -2 ºC to +8 ºC
• Fish drawer temperature: -4 ºC to +2 ºC
• Energy class: D
• Energy efficiency index: 65.890 %
• Daily consumption: 3.03 kWh
• Annual consumption: 1105 kWh
• Power: 0.813 kW
• Voltage: 230 V 1+N 50 Hz
• Climate class: 4
• Included equipment: 4 shelves + 3 perforated drawers
• Max shelving capacity: up to 17 shelves with 70 mm spacing

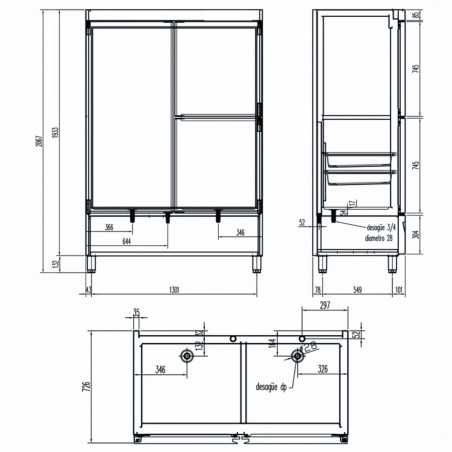

• Dimensions: 1388 x 726 x 2067 mm
