Industrial undercounters INOX, GN series 700

The Gastronorm Series 1/1 GN refrigerated counter is designed to optimize storage, preparation and cleaning in professional kitchen environments. With a capacity of 290 litres and a robust stainless steel design, this table includes a built-in sink, providing an all-in-one solution for food preparation in high-performance kitchens.

GENERAL FEATURES

• Satin-finish stainless steel worktop, with curved front edge and 100 mm sanitary backsplash to ensure hygiene and ease of cleaning.
• Integrated sink in the worktop with drainer and 340 x 370 x 150 mm bowl, ideal for cleaning and food preparation.
• Compact fully injected structure with stainless steel exterior panels and stainless steel interior body.
• Doors fitted with hinges with automatic return system and opening fixation, with built-in handle for practical and long-lasting use.
• Stainless steel recessed doors to improve insulation and robustness, with easy-to-replace gasket around the entire perimeter.
• Interior shelves made of plastic-coated rods, easily removable for cleaning and height-adjustable shelf support brackets.
• Capacity for up to 6 shelves per door with a separation of 70 mm between each shelf.
• Height-adjustable stainless steel feet for secure installation on different surfaces.
• Drain inside the chamber for quick and easy maintenance.
• Control panel and motor ventilation grille with pivoting front opening for easy access to the cooling system.
• Hermetic condensing unit with ventilated condenser and forced-draft evaporator with anti-corrosion coating.
• Eco-friendly R-290 refrigerant, CFC-free, environmentally friendly.
• Injected polyurethane insulation, CFC-free, with a density of 40 Kg/m3, providing excellent energy efficiency.
• Illuminated on-off switch and electronic temperature control with digital display, allowing efficient and precise handling.
• Automatic evaporation of defrost water and automatic defrost for easy maintenance.
• Working temperature from -2°C to +8°C, suitable for keeping fresh products in optimal conditions with an ambient temperature of up to 38°C.
• Includes 1 GN 1/1 rack and two sets of guides per door, providing flexible and optimized organization.

TECHNICAL CHARACTERISTICS

• Temperature range: -2°C to +8°C
• Working voltage: 230 V 1+N – 50 Hz

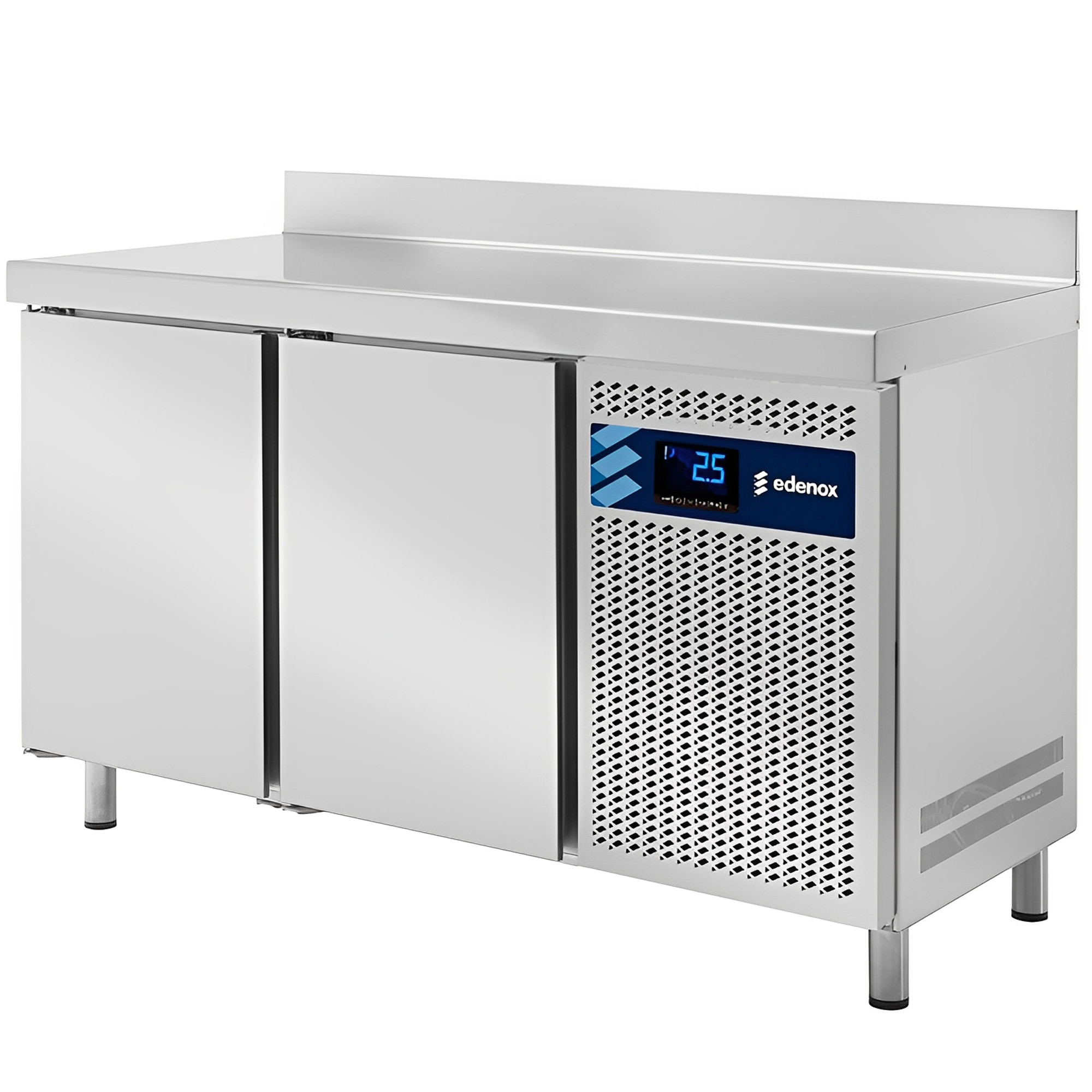

2 DOOR MODEL

• Number of doors: 2
• Door type: Blind
• Energy efficiency class: C
• Annual energy consumption: 1,018 kWh/year
• Volume: 290 liters
• Power: 0.25 kW

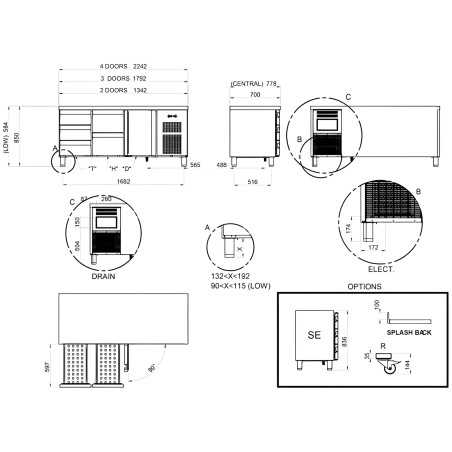

• Dimensions: 1342 x 700 x 850 mm

3 DOOR MODEL

• Number of doors: 3 (blind doors)
• Energy efficiency class: C
• Annual energy consumption: 1,119 kWh/year
• Volume: 455 liters
• Power: 0.25 kW
• Dimensions: 1792 x 700 x 850 mm

4 DOOR MODEL

• Number of doors: 4 (blind doors)
• Energy efficiency class: E
• Annual energy consumption: 1,920 kWh/year
• Volume: 615 liters
• Power: 0.33 kW
• Dimensions: 2242 x 700 x 850 mm
