Industrial INOX undercounter units, low GN for machinery, series 700
MPGB-135
€1,757.60
€2,704.00
Save 35%Tax Excluded
Most products are delivered within 2-3 working days.

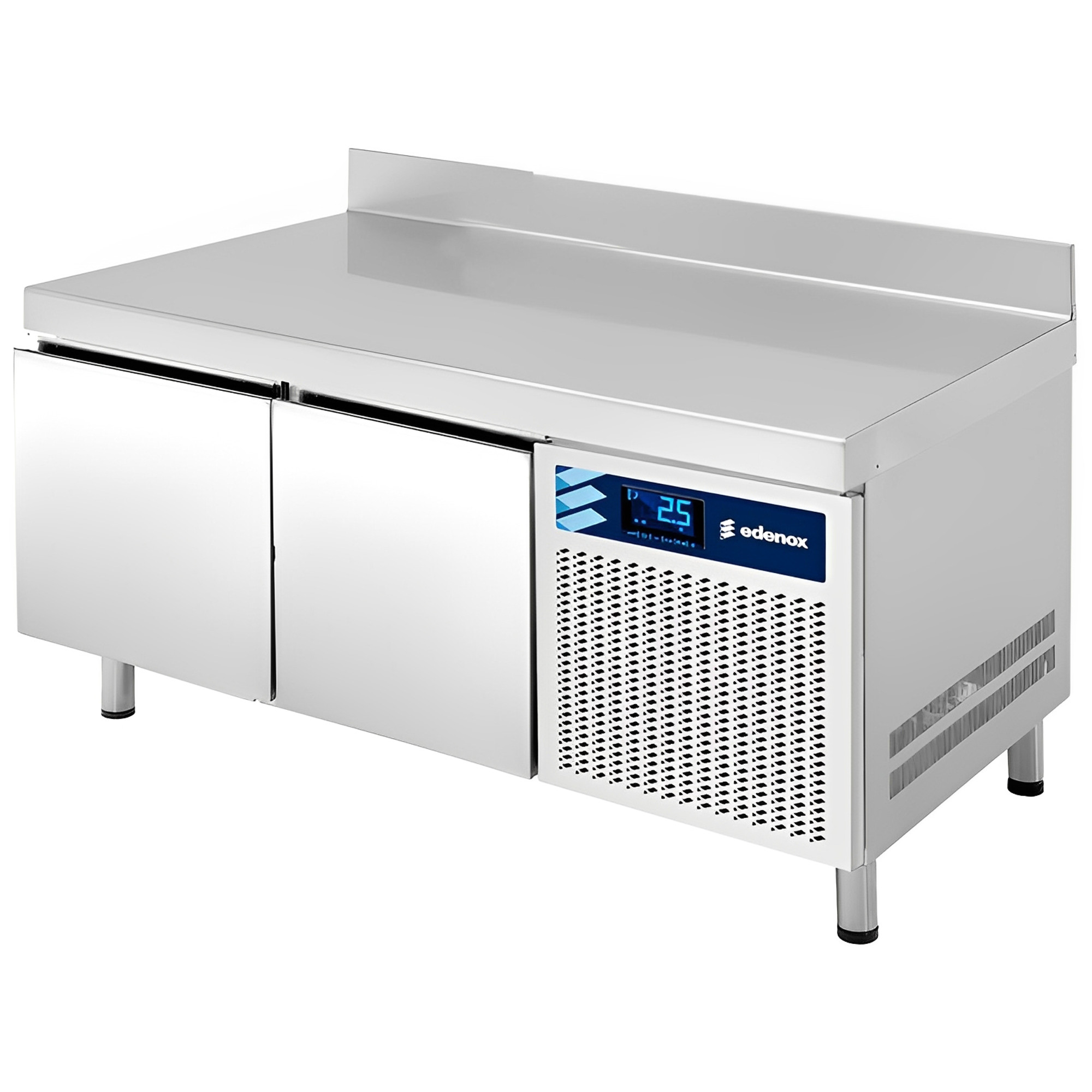

Gastronorm refrigerated tables height 600 mm GN 1/1 Series.
GENERAL CHARACTERISTICS

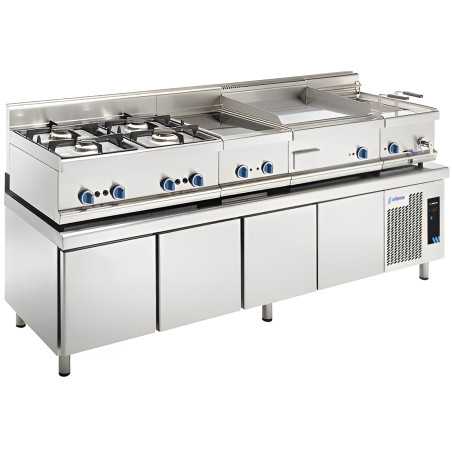

- Tables specially designed to be used as refrigerated support for cooking, preparation and conservation devices.
- The height of 600 mm allows the working surface of the devices to be between 850 mm and 900 mm.
- Compact structure fully injected with exterior panels in AISI 304 18/10 stainless steel.
- Countertop with curved front edge and 100 mm sanitary back panel.
- Countertop and interior body in AISI 304 18/10 stainless steel, satin finish.
- Stainless steel feet adjustable in height.
- Drawers made of AISI 304 18/10 stainless steel with built-in handle and perforated bottom. Provided with telescopic guides with enough projection to clear the work plane.

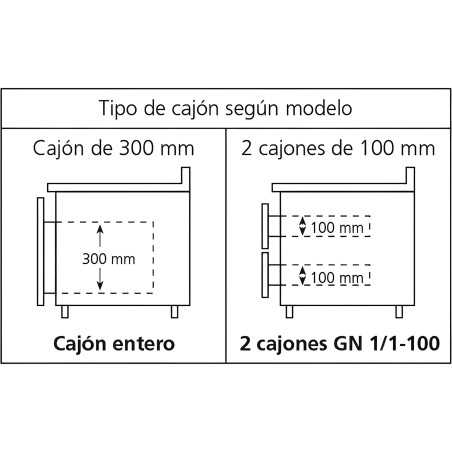

- In all models, the drawer adjacent to the refrigeration unit has a depth of 200 mm and a useful height of 250 mm.
- Drawers adapted for 100 and 200 mm deep containers.
- Drain inside the chamber.
- Forced draft evaporator with anti-corrosion coating.
- Automatic evaporation of defrost water.
- Hermetic condensing unit with ventilated condenser.
- Ecological refrigerant R-134 A free of CFC.
- Injected polyurethane insulation, CFC-free, with a density of 40 Kg/m3.
- Luminous start-stop switch.
- Electronic temperature control with digital display. Automatic defrost.
- Working temperature: -2° to +8 °C in an environment of +38 °C.
- Working voltage: 230V 1+N 50 Hz.

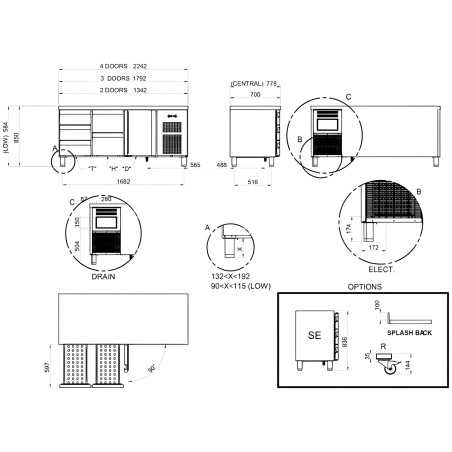

TECHNICAL CHARACTERISTICS BY MODELS
MPGB-135
- Measurements: 1342 x 700 x 584 mm
- Doors: 2
- Drawers: -
- Volume: 105 L
- Power (kW): 0.22
MPGB-180
- Measurements: 1792 x 700 x 584 mm
- Doors: 3
- Drawers: -
- Volume: 170 L
- Power (kW): 0.22
MPGB-225
- Measurements: 2242 x 700 x 584 mm
- Doors: 4
- Drawers: -
- Volume: 230 L
- Power (kW): 0.35
MPGB-135-2C
- Measurements: 1342 x 700 x 584 mm
- Doors: 1
- Drawers: 2
- Volume: 90 L
- Power (kW): 0.22
MPGB-135-3C
- Measurements: 1792 x 700 x 584 mm
- Doors: 1
- Drawers: 3
- Volume: 170 L
- Power (kW): 0.22
MPGB-135-6C
- Measurements: 2242 x 700 x 584 mm
- Doors: 1
- Drawers: 6
- Volume: 230 L
- Power (kW): 0.35
Calculate Shipping Cost
Fitted with telescopic rails with sufficient output to save the working plane.
• In all models, adjacent to the refrigeration unit drawer has a depth of 200 mm and a useful height of 250 mm.
• Drawers adapted to trays 100 and 200 mm depth.
• Drain inside the camera.
• Evaporator forced draft with anticorrosion coating.
• automatic defrost water evaporation.
• hermetic condenser unit with condenser.
• Green Refrigerant R-134 A CFC free.
• injected polyurethane insulation, CFC-free, with a density of 40 Kg / m3.
• Illuminated switch start-stop.
• electronic temperature control with digital display. Automatic defrost.
MPGB-135
Data sheet
- Tipo frío
- Puerta Ciega
Specific References
No customer reviews for the moment.
Gastronorm refrigerated tables height 600 mm GN 1/1 Series.
GENERAL CHARACTERISTICS
- Tables specially designed to be used as refrigerated support for cooking, preparation and conservation devices.
- The height of 600 mm allows the working surface of the devices to be between 850 mm and 900 mm.
- Compact structure fully injected with exterior panels in AISI 304 18/10 stainless steel.
- Countertop with curved front edge and 100 mm sanitary back panel.
- Countertop and interior body in AISI 304 18/10 stainless steel, satin finish.
- Stainless steel feet adjustable in height.
- Drawers made of AISI 304 18/10 stainless steel with built-in handle and perforated bottom. Provided with telescopic guides with enough projection to clear the work plane.
- In all models, the drawer adjacent to the refrigeration unit has a depth of 200 mm and a useful height of 250 mm.
- Drawers adapted for 100 and 200 mm deep containers.
- Drain inside the chamber.
- Forced draft evaporator with anti-corrosion coating.
- Automatic evaporation of defrost water.
- Hermetic condensing unit with ventilated condenser.
- Ecological refrigerant R-134 A free of CFC.
- Injected polyurethane insulation, CFC-free, with a density of 40 Kg/m3.
- Luminous start-stop switch.
- Electronic temperature control with digital display. Automatic defrost.
- Working temperature: -2° to +8 °C in an environment of +38 °C.
- Working voltage: 230V 1+N 50 Hz.
TECHNICAL CHARACTERISTICS BY MODELS
MPGB-135
- Measurements: 1342 x 700 x 584 mm
- Doors: 2
- Drawers: -
- Volume: 105 L
- Power (kW): 0.22
MPGB-180
- Measurements: 1792 x 700 x 584 mm
- Doors: 3
- Drawers: -
- Volume: 170 L
- Power (kW): 0.22
MPGB-225
- Measurements: 2242 x 700 x 584 mm
- Doors: 4
- Drawers: -
- Volume: 230 L
- Power (kW): 0.35
MPGB-135-2C
- Measurements: 1342 x 700 x 584 mm
- Doors: 1
- Drawers: 2
- Volume: 90 L
- Power (kW): 0.22
MPGB-135-3C
- Measurements: 1792 x 700 x 584 mm
- Doors: 1
- Drawers: 3
- Volume: 170 L
- Power (kW): 0.22
MPGB-135-6C
- Measurements: 2242 x 700 x 584 mm
- Doors: 1
- Drawers: 6
- Volume: 230 L
- Power (kW): 0.35
