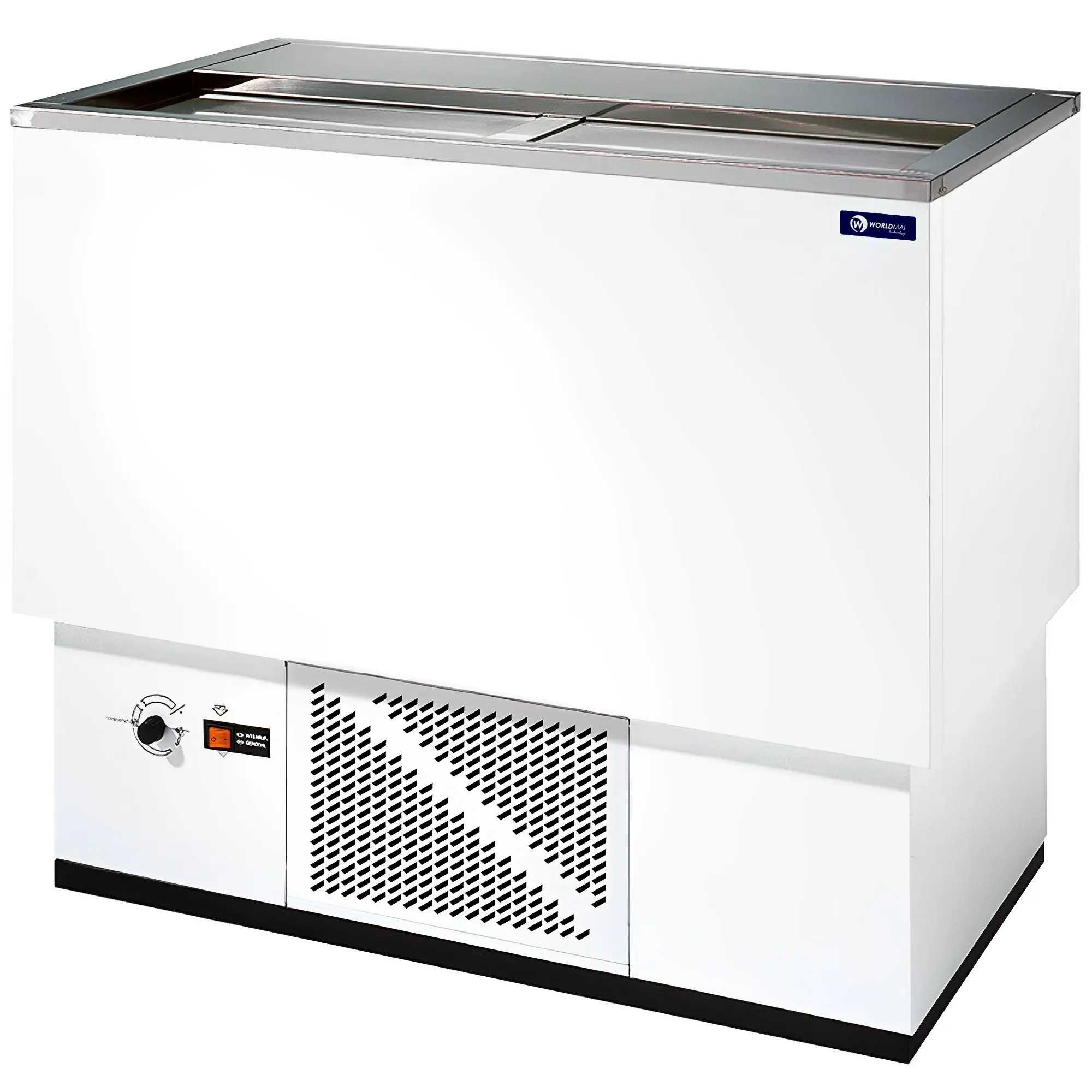

Top loading bottle well 1m and 2 doors beer fridge

The 2-door refrigerated bottle well is a compact and efficient solution for storing drinks in the hospitality industry. Finished in white, it combines professional design and functionality, with a low environmental impact thanks to the use of ecological R-600a refrigerant.

GENERAL FEATURES

• White lacquered exterior finish and galvanized interior.
• Interior with curved joints for easy cleaning.
• Sliding doors with built-in handle, designed with:
  - Upper part in satin-finished stainless steel.
  - Bottom with thermoplastic counter-door that acts as a thermal barrier.

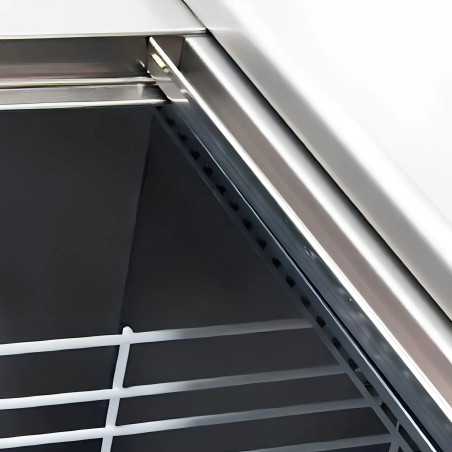

• Vertical dividers made of plasticized rods for better organization.
• Hermetic condensing unit with ventilated and removable condenser.
• Injected polyurethane insulation, CFC-free, with a density of 40 Kg/m³.
• Static evaporator with copper tube and aluminum fins.
• Drain inside the chamber for easy cleaning.
• Black enameled steel skirting board with central reinforcement for the condensing unit.
• Temperature control by thermostat and with illuminated on-off switch.

TECHNICAL CHARACTERISTICS

• Climate class: 4.
• Working temperature: -1°C to +6°C with an ambient temperature of up to 32°C.
• Gross capacity: 172 liters.
• Dimensions: 1010 x 545 x 840 mm.
• Number of doors: 2.
• Refrigerant gas: R-600a.
• Refrigerant gas charge: 47 g.
• Energy efficiency rating: C.
• Electrical power: 0.109 kW.
• Cooling capacity: 0.105 kW.
• Condensation type: Ventilated.
• Voltage: 230 V, electrical frequency: 50 Hz.
• Plug type European (Type F).
