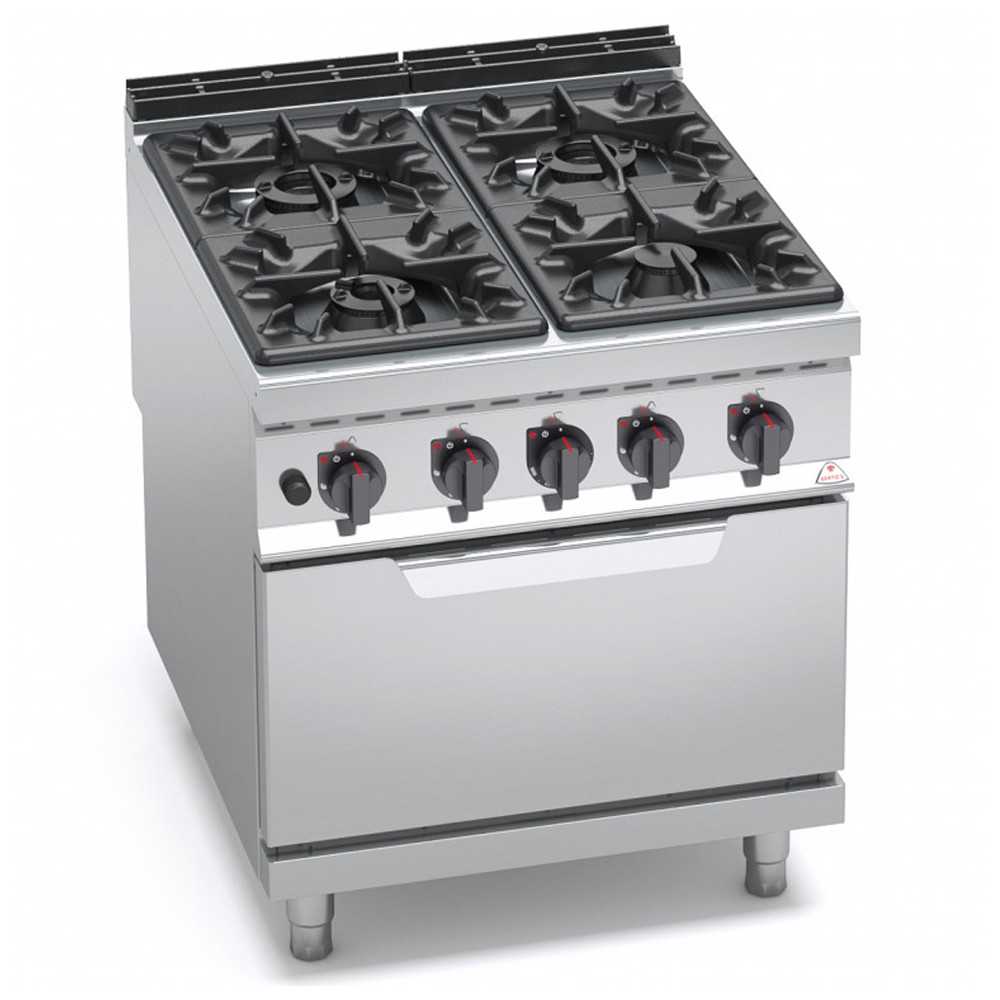

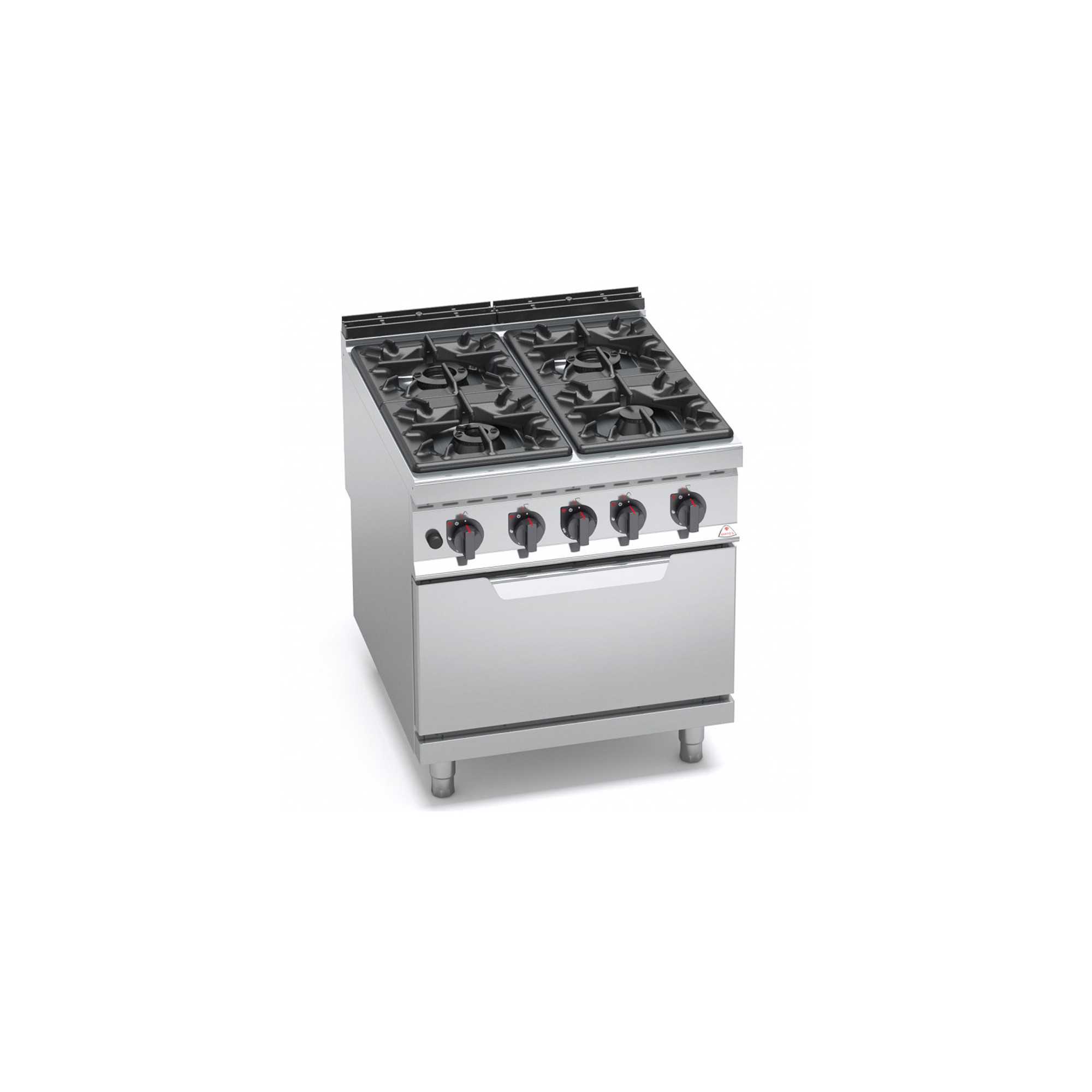

MAXIMA 900 4-burner gas cooker with 2/1 GN gas oven

Working surface and front panels in AISI 304 stainless steel. Stainless steel interior. Cast iron burners of 90 mm, with regulation up to 3.5 kW, 108 mm, with regulation up to 7 kW and 130 mm, with regulation up to 12 kW. Thermocouple safety valve and protected pilot flame. Gas oven with self-stabilised flame burner placed under the ribbed steel floor and thermostat adjustable from 160° to 280° C. Oven chamber in AISI 430, with 4-level supports and stamped and ribbed stainless steel door. AISI 304 stainless steel internal chimney and AISI 430 stainless steel burner support. High resistance AISI 304 stainless steel double moulded handles, thickness 20/10. AISI 304 stainless steel stamped containers.

GENERAL CHARACTERISTICS

• Construction in stainless steel AISI 304
• Top and front support in 1.5 mm thick stainless steel.
• Cast iron grills.
• Heat-resistant fibreglass controls with grease-proof protection.
• Stainless steel liquid collection basin.
• Very powerful cast iron burners, 3.5, 7 and 12 kW.
• Open fires with pilot flame, safety valve and bimetallic thermocouples.
• Stainless steel legs with adjustable height of 50 mm.
• Gas ovens GN 2/1 thermostatically controlled from 160 to 300 ºC.
• Stainless steel oven interior and removable tray-holder rails.
• Electric foot-panel with watertight seal and controls with grease-proof protection.
• Ovens with stamped doors with double flange.
• ACCESSORIES: Supports, Doors, Griddles, Fire reducer, Oven grills, etc.

TECHNICAL CHARACTERISTICS

• Power: 42,3 Kw
• Kcal/h: 36.378
• Btu/h: 144.328
• Total gas kW: 42,3

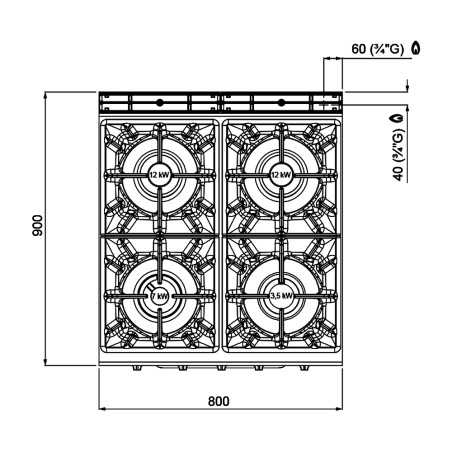

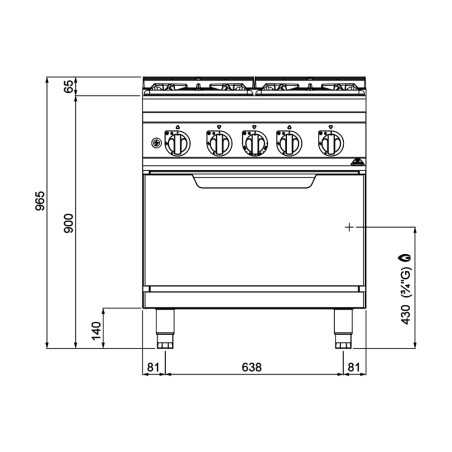

• Dimensions (mm): 800 x 900 x 900
• Weight (mm): 134
