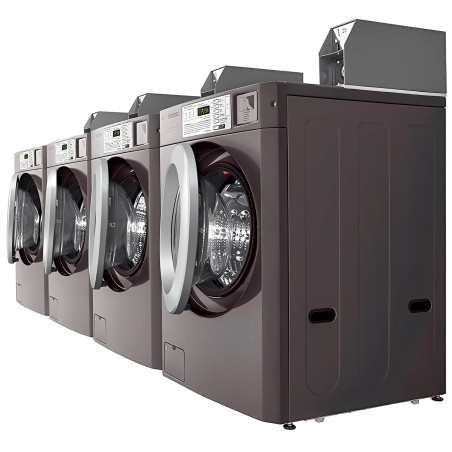

LG Titan Industrial Washer 15 kg Side by Side (S&S) Non-Stackable with Coin Mechanism

The LG TITAN 15 kg commercial washing machine with external coin acceptor is designed to deliver superior performance in professional environments such as self-service laundries, hotels, gyms, and healthcare facilities. Its 15 kg capacity allows for larger loads, reducing the number of daily cycles, optimizing energy consumption per kilogram of laundry, and significantly increasing business productivity.

The external coin acceptor system allows pay-per-use operation through automatic coin payment, ensuring that only users who make the payment can activate the machine. This system offers simple and efficient operation, ideal for businesses requiring autonomous service control. Its advanced Inverter Direct Drive system, stainless steel drum, and intelligent washing technology ensure high-quality wash cycles, maximum energy efficiency, and quiet operation.

GENERAL FEATURES

• High-resistance electrostatic powder coating
• Multithermal treatment on the shaft that connects the drum to the motor
• Inverter Direct Drive system: the drum is directly connected to the motor

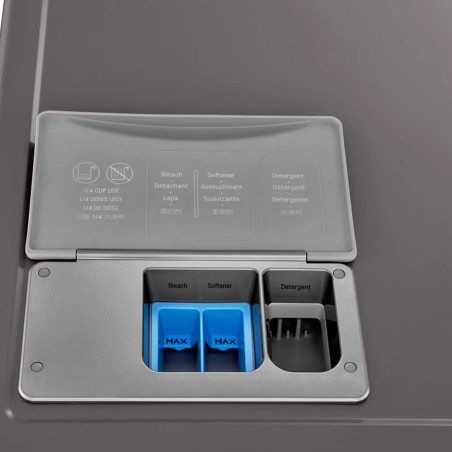

• Top dispenser or automatic liquid injection interface (4–5 injection signals)
• Vibration reduction through multi-shock absorption (4 units)
• High-durability stainless steel drum
• Tempered glass door
• Energy Star certification for maximum energy efficiency
• Atomizing system to improve washing performance
• Automatic drum cleaning system
• Embossed drum interior for improved fabric care
• Heating control system with selectable resistances
• Custom cycles, easy programming, and multilingual display
• Gyro Balancing System: gyroscopic sensor optimizing drum movement
• LG Smart Solution: cloud-based remote machine management

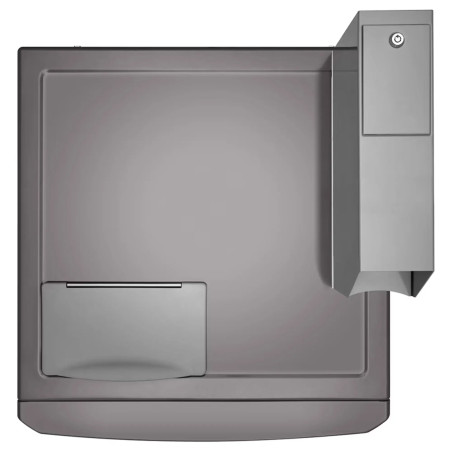

• External coin acceptor for automatic payment with coins

HYGIENE FUNCTIONS – 3+1 HYGIENE CARE LAUNDRY SYSTEM

• Drum cleaning cycle
• Hygiene cycle
• Intensive drum cleaning cycle
• Drying (part of the dryer unit)
• Control panel with built-in WiFi system

TECHNICAL FEATURES

• Drum volume: 147 L
• Drum diameter: 610.8 mm
• Drum depth: 581.1 mm
• Product dimensions (W x D x H): 737 x 814 x 1036 mm
• Height with door open: 1370 mm
• Packed dimensions (W x D x H): 788 x 846 x 1125 mm
• Net / gross weight: 105 / 112.5 kg
• Wash speed: 46 RPM
• Extraction speed (high speed): 1000 RPM
• G-force: 327 G
• Electrical rating: 220–240 V / 50 Hz / 1~
• Water consumption per cycle: 47 L
• Electrical consumption: 3.2–3.8 kW/cycle
• Noise level: less than 62 dB
• Standard program duration: 59 min
• Inverter Direct Drive Motor: OK
• Heating element: 220 V / 3200 W
• Drainage system: gravity drain
• Emergency stop button: 0 (OPL only)
• Automatic dosing interface: OK
• Gyro sensor: OK
• Drum: stainless steel
• PCB Fuse (main board): 12 A
• PCB Fuse (filter assembly): 15 A
• Programs: 90 ºC, 75 ºC, 60 ºC, 40 ºC, cold, Custom PGM

POSITIONING

• Side By Side (S&S): machines placed next to each other, non-stackable.
