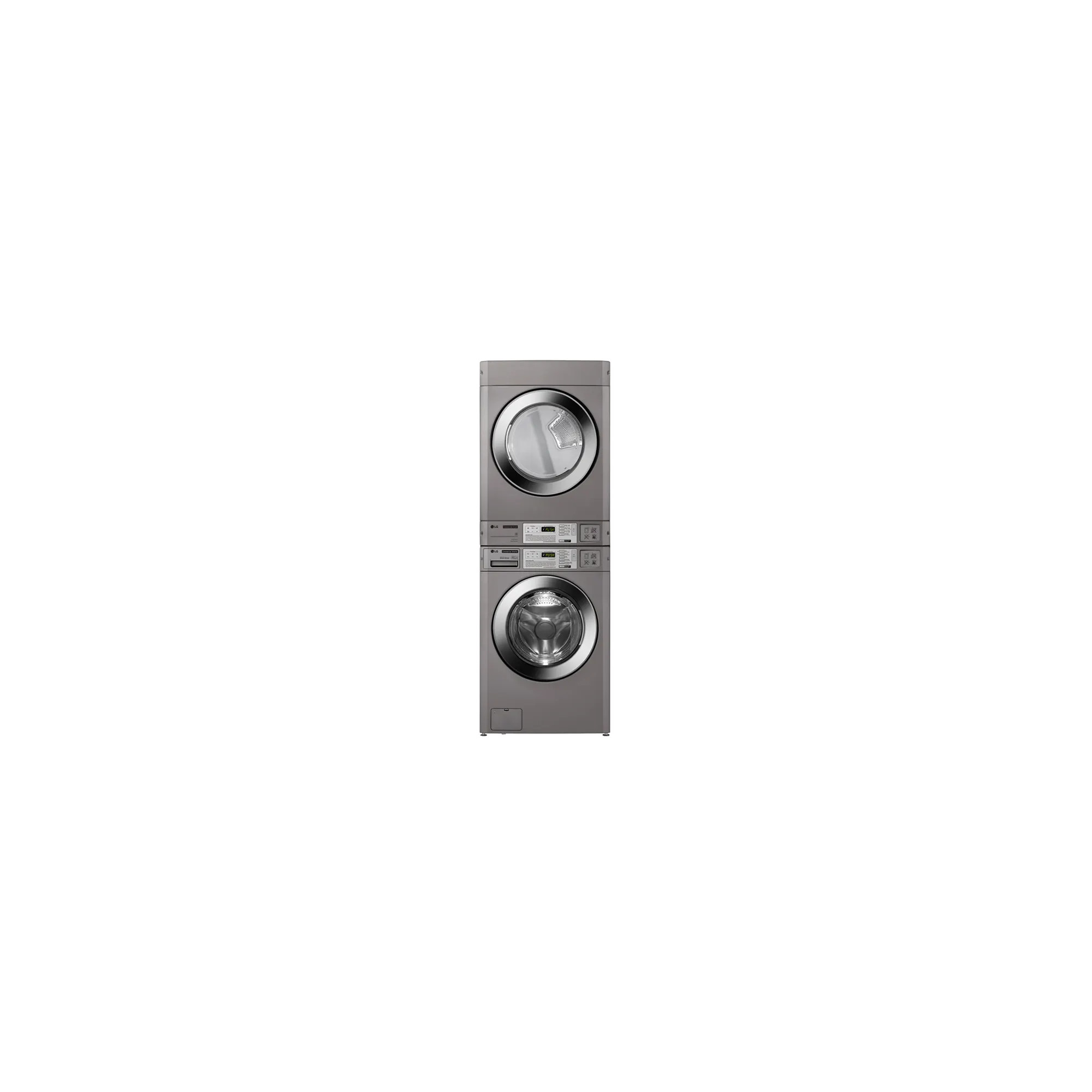

LG Titan Washer + Dryer Tower 15 kg with coin mechanism

The LG TITAN 15 kg washer + dryer laundry column combines in a single unit a high-capacity professional washing machine on the bottom and a commercial dryer on the top. It is the ideal solution for self-service laundries, hotels, gyms and healthcare facilities that need to maximise capacity in limited space without sacrificing professional performance.

This set is available with two dryer options: a gas version or an electric version, allowing you to choose the configuration that best suits your installation and energy consumption needs. In addition, this model includes an integrated internal coin box: a coin-operated payment system completely hidden within the structure of the column. This design provides a cleaner and more professional aesthetic, prevents tampering and improves ease of use. When users insert the coins, the tower automatically enables the washer or dryer depending on the configured mode.

GENERAL FEATURES

• Compact LG TITAN 15 kg washer + dryer column for professional use
• Washer at the bottom and dryer at the top for space optimisation
• Choice of gas or electric dryer depending on installation requirements
• Washer with Inverter Direct Drive system: drum directly connected to the motor for higher durability and reduced vibration
• Vibration reduction through multi-suspension system (4 units)
• Washer drum made of stainless steel with embossed interior for better garment care
• Washer door with tempered glass and wide opening
• Atomising system to improve penetration of water and detergent into fabrics
• Drum cleaning system and deep hygiene cycles (3+1 HYGIENE CARE LAUNDRY SYSTEM)
• Dryer with ventilated drying system and automatic temperature and humidity sensor
• AdaptAble™ controls allowing relocation of the dryer’s control panel next to the washer’s panel
• LG Smart Solution with cloud connectivity for remote management and diagnostics
• Panels with built-in WiFi system
• Security with 4-digit password for programme customisation
• Integrated internal coin box for automatic coin payment, more aesthetic, secure and user-friendly

TECHNICAL SPECIFICATIONS

LG TITAN 15 kg WASHER

• Drum volume: 147 L
• Drum diameter: 610.8 mm
• Drum depth: 581.1 mm
• Washer dimensions (W x D x H): 737 x 814 x 1036 mm
• Height with door open: 1370 mm
• Net / gross weight: 100.6 / 112.5 kg
• Wash speed: 46 RPM
• Spin speed: 1000 RPM
• G-force: 327 G
• Electrical rating: 220–240 V / 50 Hz / 14–17 A
• Water consumption per cycle: 47 L
• Electrical consumption: 3.2–3.8 kW/cycle
• Noise level: under 62 dB
• Standard programme duration: 59 min
• Heating element: 220–240 V / 3200 W
• Drum: stainless steel

LG TITAN 15 kg DRYER – GAS OPTION (configurable in the column)

• Drum volume: 254 L
• Drum diameter: 716 mm
• Drum depth: 614 mm
• Gas dryer dimensions (W x D x H): 737 x 1090 x 1022 mm
• Net / gross weight: 100 / 108 kg
• Electrical rating: 120 V / 60 Hz / 10 A
• Electrical consumption: 15 kWh per cycle
• Heating type: gas (LNG / LPG)
• Drying type: ventilated
• Airflow: 350 CFM
• Motor: 0.30 kW
• Gas rating: 16 kW / 55,000 BTU
• Default programme duration: 50 min
• Air outlet diameter: 154 mm
• Programmes: High Temp, Medium Temp, Low Temp, No Heat
• Drum: stainless steel

LG TITAN 15 kg DRYER – ELECTRIC OPTION (configurable in the column)

• Drum volume: 254 L
• Drum diameter: 716 mm
• Drum depth: 614 mm
• Electric dryer dimensions (W x D x H): 737 x 1090 x 1022 mm
• Net / gross weight: 100 / 108 kg
• Electrical rating: 220–240 V / 50/60 Hz / 22.5 A
• Electrical consumption: 920 W per cycle
• Heating type: electric
• Heating elements: 5.4 kW
• Drying type: ventilated
• Airflow: 350 CFM
• Motor power: 0.3 kW
• Default programme duration: 50 min
• Air outlet diameter: 154 mm
• Programmes: High Temp, Medium Temp, Low Temp, No Heat
• Drum: stainless steel
