Quick ice, with vertical evaporator. Practical, immediate, fresh and light, it only weighs 7 grams. For all kinds of soft drinks, snacks, etc. Great production in minimum time.

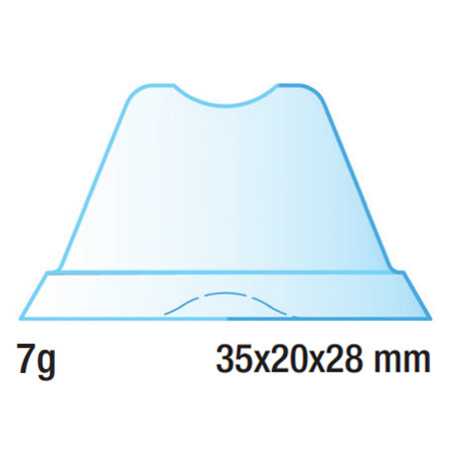

Dimensions 35 x 28 x 20mm.
GENERAL CHARACTERISTICS
- Aisi 304 stainless steel exterior, stainless steel monoblock bodywork with high-pressure injected polyurethane insulation, CFC-free.
- ABS food container. Tinned evaporator.
- Ice manufacturing system by injection using metal diffusers with a reinforced section, and easily removable, to allow a large passage of water and reduce the effects caused by hard water.
- Production with room temperature at +21 ºC and water at +15 ºC.
- Door, exterior in stainless steel.
- Voltage: 1x230 V./50 Hz. (possibility of special voltages).
- Measurements without legs, adjustable leg height 110-150 mm.
- Water inlet Ø ¾ and outlet Ø 24 mm.
TECHNICAL CHARACTERISTICS
- PRODUCTION (KG/24H): 200
- DIMENSIONS WITHOUT LEGS (MM): 770 x 550 x 805
- CONDENSATION: A-W
- NO. OF CUBES PER CYCLE: 252
- POWER (W): 1600
TANKS FOR THE ICE MACHINE
BIN 240 PE
- CONTAINER CAPACITY (KG): 240
- DIMENSIONS WITHOUT LEGS (MM): 942 x 795 x 1053
- BUILT IN STAMPED POLYETHYLENE.
- HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
- INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.
BIN 110
- CONTAINER CAPACITY (KG): 100
- DIMENSIONS WITHOUT LEGS (MM): 560 x 815 x 1000
- STRUCTURE IN STAINLESS STEEL 18/8.
- HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
- INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.
BIN 200
- CONTAINER CAPACITY (KG): 200
- DIMENSIONS WITHOUT LEGS (MM): 870 x 790 x 1000
- STRUCTURE IN STAINLESS STEEL 18/8.
- HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
- INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.
BIN 350
- CONTAINER CAPACITY (KG): 350
- DIMENSIONS WITHOUT LEGS (MM): 1250 x 790 x 1000
- STRUCTURE IN STAINLESS STEEL 18/8.
- HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
- INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.
