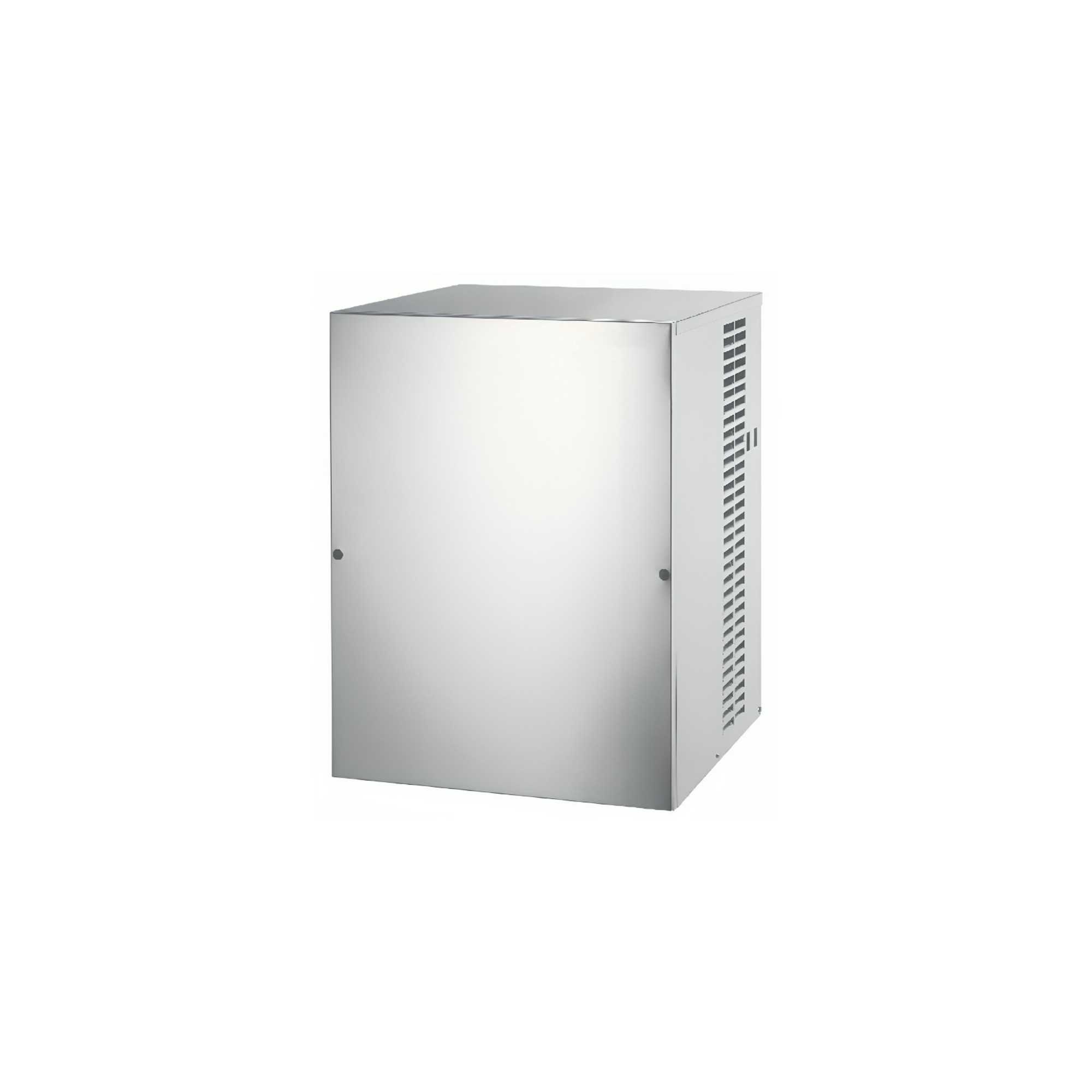

Quick ice, with vertical evaporator. Practical, immediate, fresh and light, it only weighs 7 grams. For all kinds of soft drinks, snacks, etc. Great production in minimum time.

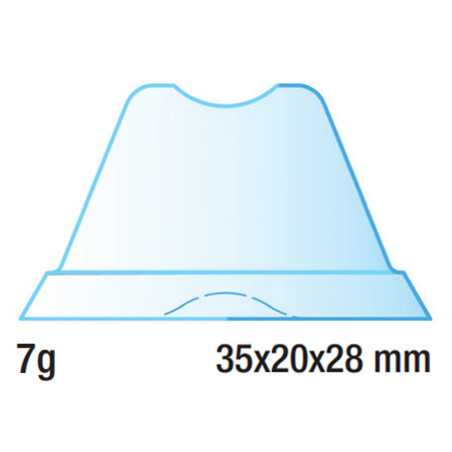

Dimensions 35 x 28 x 20mm.

GENERAL CHARACTERISTICS

• Aisi 304 stainless steel exterior, stainless steel monoblock bodywork with high-pressure injected polyurethane insulation, CFC-free.
• ABS food container. Tinned evaporator.
• Ice manufacturing system by injection using metal diffusers with a reinforced section, and easily removable, to allow a large passage of water and reduce the effects caused by hard water.
• Production with room temperature at +21 ºC and water at +15 ºC.
• Door, exterior in stainless steel.
• Voltage: 1x230 V./50 Hz. (possibility of special voltages).
• Measurements without legs, adjustable leg height 110-150 mm.
• Water inlet Ø ¾ and outlet Ø 24 mm.

TECHNICAL CHARACTERISTICS

• PRODUCTION (KG/24H): 140
• DIMENSIONS WITHOUT LEGS (MM): 540 x 544 x 744
• CONDENSATION: A-W
• NUMBER OF CUBES PER CYCLE: 168
• POWER (W): 1400

TANKS FOR THE ICE MACHINE

BIN 240 PE

• CONTAINER CAPACITY (KG): 240
• DIMENSIONS WITHOUT LEGS (MM): 942 x 795 x 1053
• BUILT IN STAMPED POLYETHYLENE.
• HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
• INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.

BIN 110

• CONTAINER CAPACITY (KG): 100
• DIMENSIONS WITHOUT LEGS (MM): 560 x 815 x 1000
• STRUCTURE IN STAINLESS STEEL 18/8.
• HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
• INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.

BIN 200

• CONTAINER CAPACITY (KG): 200
• DIMENSIONS WITHOUT LEGS (MM): 870 x 790 x 1000
• STRUCTURE IN STAINLESS STEEL 18/8.
• HIGHLY INSULATED, PREVENTS ICE MELTING FOR A LONG TIME.
• INNER POLYETHYLENE CELL, SUITABLE FOR CONTACT WITH FOOD AND UNDER CE AND ETLS REGULATIONS. EASY TO CLEAN.

CUBES DISPENSER FOR ICE MACHINE (WITH MANUAL LOAD)

• CONTAINER CAPACITY (KG): 18-21
• DIMENSIONS WITHOUT LEGS (MM): 568 x 799 x 817
• POWER (W): 240
