Simply great! The best cube that your drink and your ice machine can get!

Large volume hollow cubes with finger-like dimensions for efficient cooling with maximum heat transfer in the highest ambient temperatures.

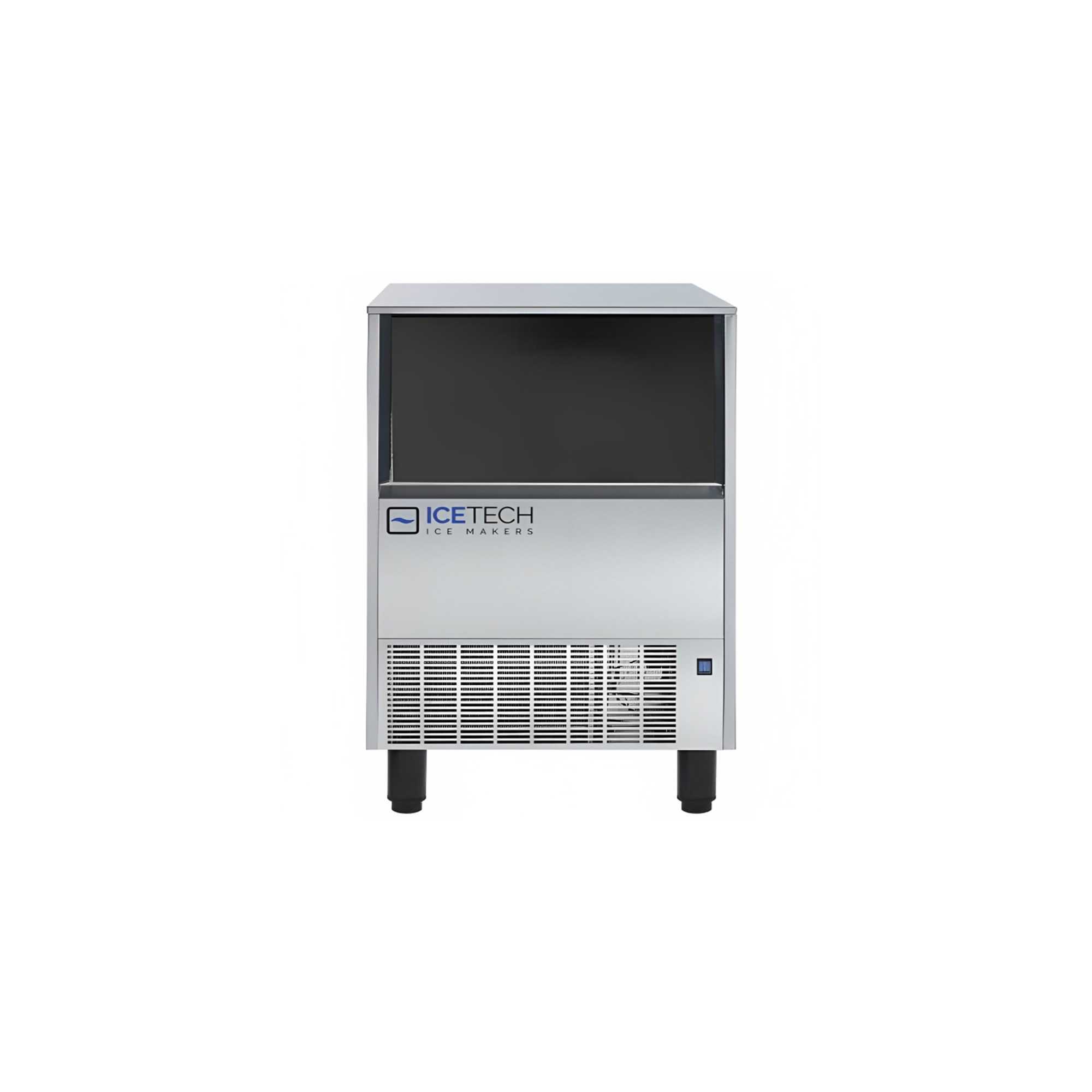

The ICE TECH PS paddlewheel machine is equipped with a completely electromechanical control, without motors or injectors fed by a pump, which makes the ICE TECH PS machine extremely reliable in the most difficult conditions concerning water quality.

High-grade, food-grade stainless steel and higher-density insulation ensure quality with optimized energy consumption.

GENERAL CHARACTERISTICS

• Adjustable and long-lasting 20 gram ice cube.
• AISI 304 stainless steel body.
• Pallet injection system. Low quality water or lime does not affect the ICE TECH PS machine. Without pump and injectors.
• Simple electromechanical controls, easy to understand and maintain. High reliability and low cost spare parts.
• ICE TECH PS switch does not have a thermostat because it is a machine without electronic control.
• T-class tropicalized machines.
• The ice production capacity (KG/24H) is shown at room temperature of 21ºC, and water temperature 15ºC.
• ISO 9001, CE certification.
• R452A & R290 refrigerant.
• Water inlet Ø=3/4” Gas.
• Drain connection Ø=20 mm.
• Single-phase power 220V-50Hz. / Optional: 220V-60Hz.

TECHNICAL CHARACTERISTICS

• PRODUCTION WITH AIR CONDENSING SYSTEM (KG/24H): 80
• PRODUCTION WITH WATER CONDENSING SYSTEM (KG/24H): 84
• STORAGE (KG): 37
• MAX POWER (W): 775
• DIMENSIONS (MM): 673 x 557 x 984 (Legs + 105 / - 155 mm)
