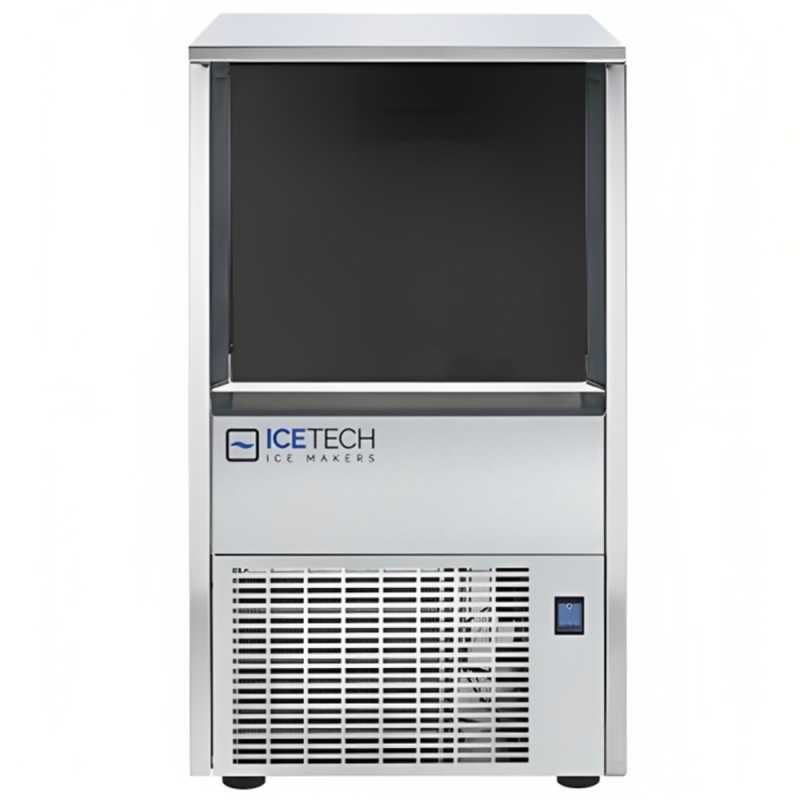

Ice finger machine ICE TECH PS 22

New product

1 250,00€tax excl.

Calculate Delivery Cost

Simply great! The best cube that your drink and your ice machine can get!

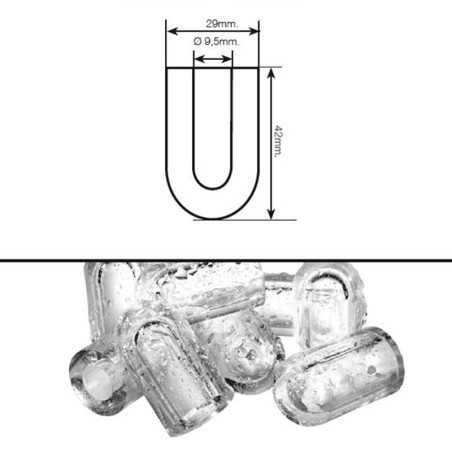

Large volume hollow cubes with finger-like dimensions for efficient cooling with maximum heat transfer in the highest ambient temperatures.

The ICE TECH PS paddlewheel machine is equipped with a completely electromechanical control, without motors or injectors fed by a pump, which makes the ICE TECH PS machine extremely reliable in the most difficult conditions concerning water quality.

High-grade, food-grade stainless steel and higher-density insulation ensure quality with optimized energy consumption.

GENERAL CHARACTERISTICS

  • Adjustable and long-lasting 20 gram ice cube.
  • AISI 304 stainless steel body.
  • Pallet injection system. Low quality water or lime does not affect the ICE TECH PS machine. Without pump and injectors.
  • Simple electromechanical controls, easy to understand and maintain. High reliability and low cost spare parts.
  • ICE TECH PS switch does not have a thermostat because it is a machine without electronic control.
  • T-class tropicalized machines.
  • The ice production capacity (KG/24H) is shown at room temperature of 21ºC, and water temperature 15ºC.
  • ISO 9001, CE certification.
  • R452A & R290 refrigerant.
  • Water inlet Ø=3/4” Gas.
  • Drain connection Ø=20 mm.
  • Single-phase power 220V-50Hz. / Optional: 220V-60Hz.

TECHNICAL CHARACTERISTICS

  • PRODUCTION WITH AIR CONDENSING SYSTEM (KG/24H): 22
  • PRODUCTION WITH WATER CONDENSING SYSTEM (KG/24H): 24
  • STORAGE (KG): 6
  • MAX POWER (W): 235
  • DIMENSIONS (MM): 402 x 507 x 643 (Legs + 12 / - 20 mm)
Height (mm)643 cm
Width (mm)402 cm
Depth (mm)507 cm
