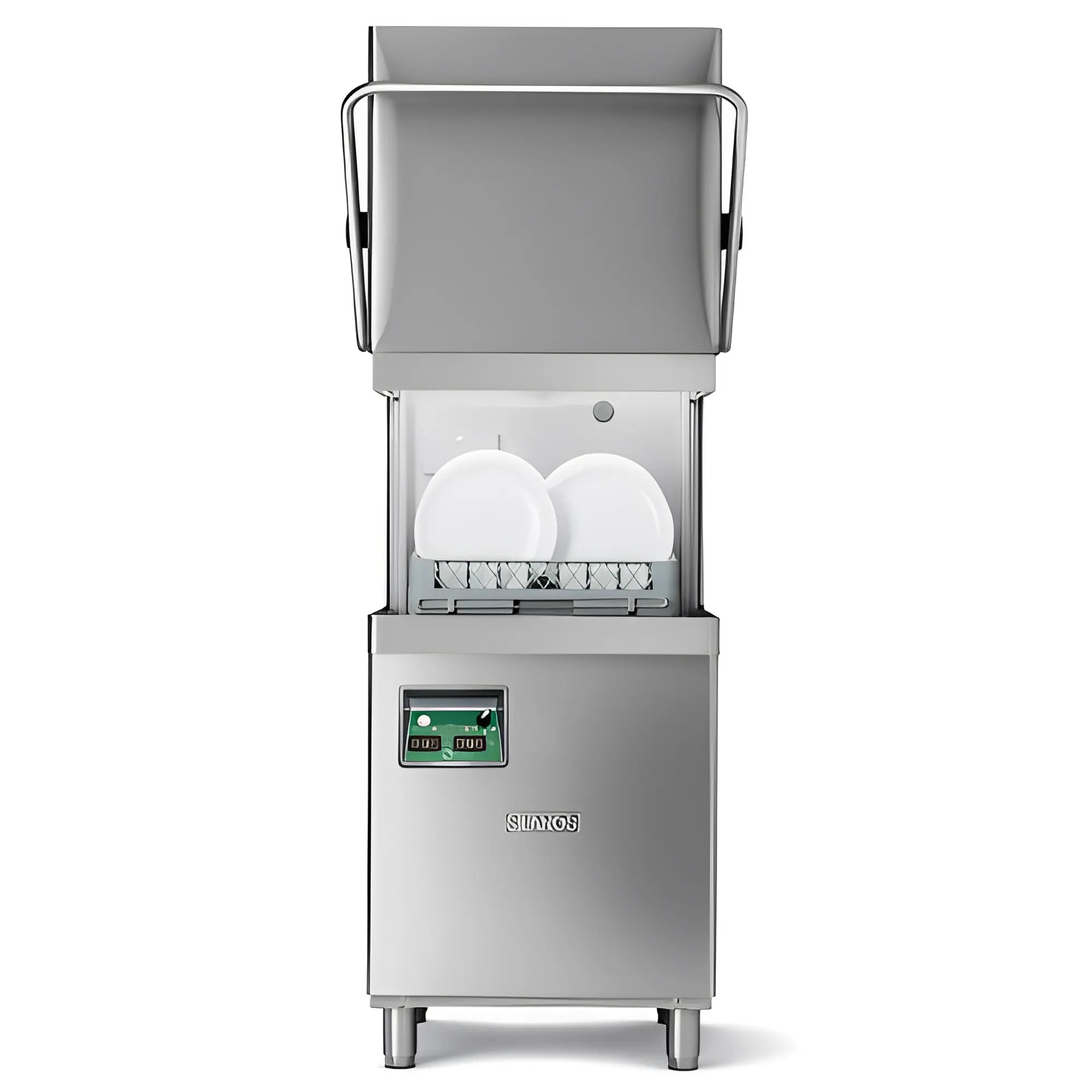

Industrial Dome Dishwasher 35 liters with HY-NRG system
Industrial Dome Dishwasher 35 liters with HY-NRG system

Industrial Dome Dishwasher 35 liters with HY-NRG system

MBH-NE-1300-HY-NRG
Review (0)
€3,353.00
Tax Excluded
In stock

Industrial dome dishwasher for catering. Hood dishwasher with 50x50 basket for bar, restaurant and hotel.

Quantity :
Write your review

EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

     Calculate Shipping Cost

    TECHNICAL CHARACTERISTICS

    • Electromechanical control panel.
    • Stainless steel construction.
    • Double wall with thermal and acoustic insulation (less than 69 dBA).
    • Vertical washing pump with self-emptying, guaranteeing maximum hygiene and washing efficiency.
    • Independent wash and rinse arms.
    • Double interchangeable and easily removable filter.
    • Adjustable peristaltic rinse aid dispenser.
    • Equipment: 2 baskets of dishes / 1 basket of glasses.
    • Drain pump or optional power increase (consult for more information).

    HY-NRG SYSTEM

    Rinsing pump, break tank and atmospheric boiler.

    The washing process, temperatures and pressures are managed by the innovative HY-NRG system and combined with the dosing of chemical products. The pressure is controlled by the integrated rinsing pump regardless of the pressure of the external network while the temperature is kept constant throughout the entire phase of the cycle by means of the atmospheric boiler associated with the break tank. The internal pressure booster pump provides the same amount of rinse water in each cycle, constantly at the same pressure. Consequently, the dishwasher is autonomous and is not subject to problems caused by lack of pressure or insufficient temperature due to anomalies in the supply.

    GENERAL CHARACTERISTICS

    • Dimensions (mm): 655 x 785 x 1480 (1930)
    • Basket Dimensions (mm): 500 x 500
    • Total Power (kw): 7.10 (10.10)
    • Door (H) useful (mm): 405
    • Voltage (V): 3 x 400 / 230
    • Tank capacity (litres): 35
    • Boiler capacity (litres): 9
    • Water consumption/cycle (liters): 3
    • Boiler resistance (kw): 6
    • Tank resistance (kw): 3
    • Cycle duration: 60’’ - 120’’ - 180’’
    • Supply pressure (Kpa): 200 400
    • Net Weight (kg): 112
    • Basket capacity: 18 plates
    • Endowment: 2 plates 1 glasses
    MBH-NE-1300-HY-NRG

    Data sheet

    Width (mm)
    655
    Depth (mm)
    785
    Weight (kg)
    112
    Cestas
    50 x 50
    Height (mm)
    1480 (1930)

    Specific References
