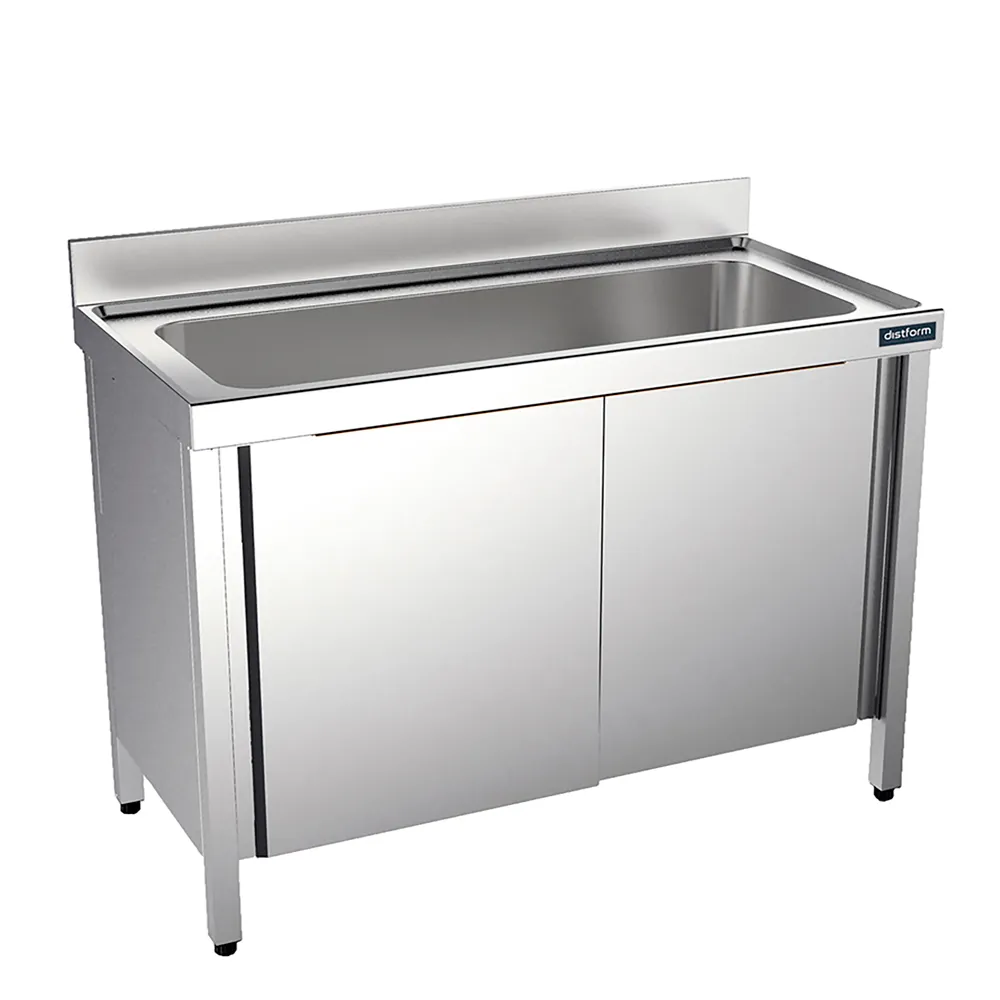

Industrial sinks with frame and doors for professional catering

This range of professional sinks is designed to provide maximum stability, easy cleaning and practical installation in industrial kitchens. Its design with frame, sliding doors and open back combines washing capacity, access to installations and efficient use of the lower space.

GENERAL FEATURES INDUSTRIAL STAINLESS STEEL SINKS WITH DOORS

• Manufactured entirely in AISI 304 18/10 stainless steel.
• Pressed bowls with soundproofing protection.
• Drain valve and overflow pipe included in each bowl.
• 105 mm rear upstand to protect the work area.
• 65 mm rounded sanitary front edge, fully welded.
• Frame manufactured entirely in stainless steel.
• Intuitive assembly system to easily fit the frame to the sink.
• Fixing system that provides a solid union between sink and frame.
• Sliding doors with smooth movement.
• No lower guides for easier cleaning.
• Open back to allow access to installations.
• Designed to incorporate an optional lower shelf.

TECHNICAL FEATURES PROFESSIONAL WASHING AREAS FOR HORECA KITCHENS

• Sink material: AISI 304 18/10 stainless steel.
• Frame material: stainless steel.
• Adjustable height: from 850 to 900 mm.
• Legs: 40 x 40 mm square stainless steel legs.
• Rear legs: set back 40 mm for installation on floors with sanitary radius.
• Rear upstand: 105 mm.
• Sanitary front edge: 65 mm.
• Door type: sliding.
• Lower guides: not included, to improve cleaning.
• Back: open.

MODEL: FBPG7100

• Dimensions: 1000 x 700 mm.
• Bowl dimensions: 860 x 500 x 380 mm.

MODEL: FBPG7120

• Dimensions: 1200 x 700 mm.
• Bowl dimensions: 1060 x 500 x 380 mm.

MODEL: FBPG7140

• Dimensions: 1400 x 700 mm.
• Bowl dimensions: 1200 x 500 x 380 mm.

MODEL: FBPG716D

• Dimensions: 1600 x 700 mm.
• Bowl dimensions: 860 x 500 x 380 mm.
• Drainer: right-hand side.

MODEL: FBPG716I

• Dimensions: 1600 x 700 mm.
• Bowl dimensions: 860 x 500 x 380 mm.
• Drainer: left-hand side.

MODEL: FBPG718D

• Dimensions: 1800 x 700 mm.
• Bowl dimensions: 1160 x 500 x 380 mm.
• Drainer: right-hand side.

MODEL: FBPG718I

• Dimensions: 1800 x 700 mm.
• Bowl dimensions: 1160 x 500 x 380 mm.
• Drainer: left-hand side.

MODEL: FBPG7183

• Dimensions: 1800 x 700 mm.
• Bowl dimensions: 500 x 500 x 300 mm.

MODEL: FBPG7182

• Dimensions: 1800 x 700 mm.
• Bowl dimensions: 800 x 500 x 380 mm.

MODEL: FBPG720D

• Dimensions: 2000 x 700 mm.
• Bowl dimensions: 1160 x 500 x 380 mm.
• Drainer: right-hand side.

MODEL: FBPG720I

• Dimensions: 2000 x 700 mm.
• Bowl dimensions: 1160 x 500 x 380 mm.
• Drainer: left-hand side.

RECOMMENDED USES PROFESSIONAL SINKS WITH CABINET AND SLIDING DOORS

• Industrial kitchens in restaurants, bars and cafés that need a resistant and easy-to-clean washing area.

• Workshops, catering facilities and food businesses that require stainless steel horeca equipment.

• Professional washing areas where a sink, frame and enclosed lower space with sliding doors are required.

FREQUENTLY ASKED QUESTIONS (FAQ) COMMERCIAL SINKS FOR CATERING AND RESTAURANTS

• Are they made of stainless steel? Yes, the sink is made of AISI 304 18/10 stainless steel and the frame is also manufactured entirely in stainless steel.

• Do the doors make lower cleaning difficult? No, the sliding doors do not include lower guides, making the work area easier to clean.

• Can they be installed on floors with a sanitary radius? Yes, the rear legs are set back 40 mm to make installation easier in spaces with a sanitary radius.
