bakery display case

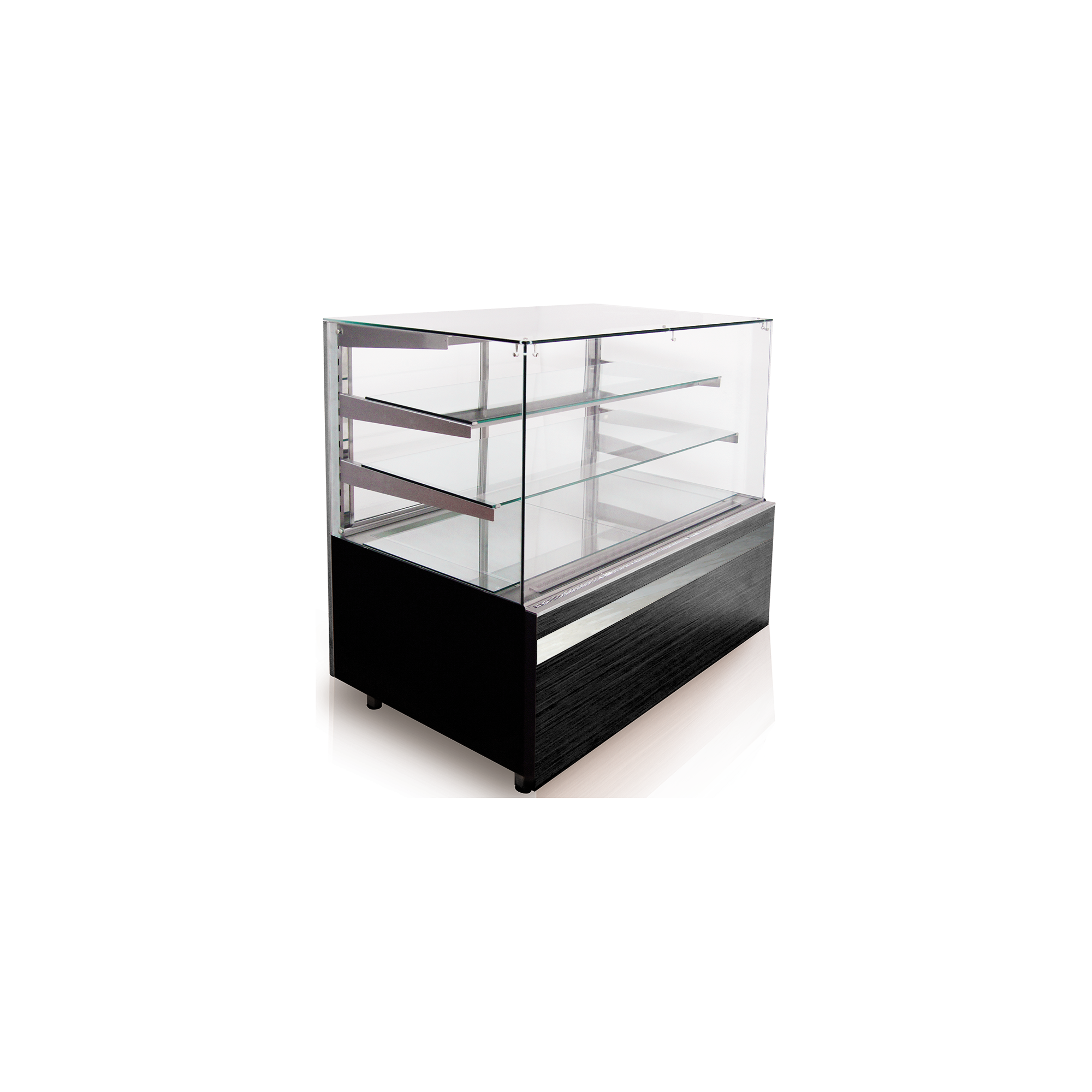

Refrigerated display case CUBE GC103 / GC102 / GC101

standard equipment inside refrigerated unit feeding

external drive device adapted to be connected in series < br /> ventilated cooling system
outer body coated steel black
side coated steel black colored
front divided black insertion melamine mirror glass or polished stainless steel sheet - available in different colors
side glass panels or glass divider units connected in series

straight front glass insulation ecological polyurethane foam
jamb and anodized aluminum profiles silver or gold (colors)
2 adjustable glass shelves exhibiting angle and height bottom shelf
melamine - available in different colors
sliding double glazed rear doors (GASTROLINE CUBE 0.6 - hinged doors with a choice of opening direction)
upper interior lighting + lighting on each shelf - LEO light (color cake) automatic defrost
automatic evaporation of condensate
electronic temperature controller with digital display
alarm warning of impurities in the condenser or fan lock


options unit without side panels side panels ready for connection in series (MOO / A) painted steel - available in different colors front panel of wood or TRENO - available in different colors
inner stainless steel frame for the module 0.6
inner stainless steel frame for the module 0.9
inner stainless steel frame for module 1.3
electronic control system />
temperature recorder cable (RS232-USB)
small tray (400mm x 340mm)
small tray (400mm x 420mm)
medium tray (400mm x 510mm)
Lower tray (400mm x 520mm) wheelset

display case CUBE neutral GC103N / GC102N / GC101N
neutral display (without cooling)
lower body made of black melamine
front divided black insertion melamine mirror glass or polished sheet steel inoxidable4
side sheet coated black color
inner frame painted, silver or gold (IGLOO colors) display shelves
glass height and angle adjustable suspension
bottom shelf made
black melamine sliding rear door with glass combinado¹

1Cube 0.6- openable door opening direction selection 4altura insertion: 60mm


straight front glass of each shelf lighting - LED fluorescent (pastry)
adjustable feet for leveling device
1Cube 0.6- openable door opening direction selection height of attachment: 60mm
device adapted for individual formwork (frameless wood)
side colored coated sheet negro² < br /> color side - choose the color option (IGLOO colors)
full head of black color melamine
front melamine - choose the color option (IGLOO colors)
front body made of veneer board or TREND-color choice (IGLOO colors)
internal stainless steel frame for the module 0.6
inner stainless steel frame for the module 0.9
inner stainless steel frame for the module 1.3
small tray (400mm width x depth. 420mm )
medium tray (400mm x width 510mm depth)
lower tray (400mm x width 520mm depth)
game ruedas³

²se applied to CUBE (N) - ³no MOD applies to CUBE (N) -BLOCK

br /> ²se applied to CUBE (N) -BLOCK ³no applies to CUBE (N) -BLOCK br /> ²se applied to CUBE (N) -BLOCK ³no applies to CUBE (N) -BLOCK
