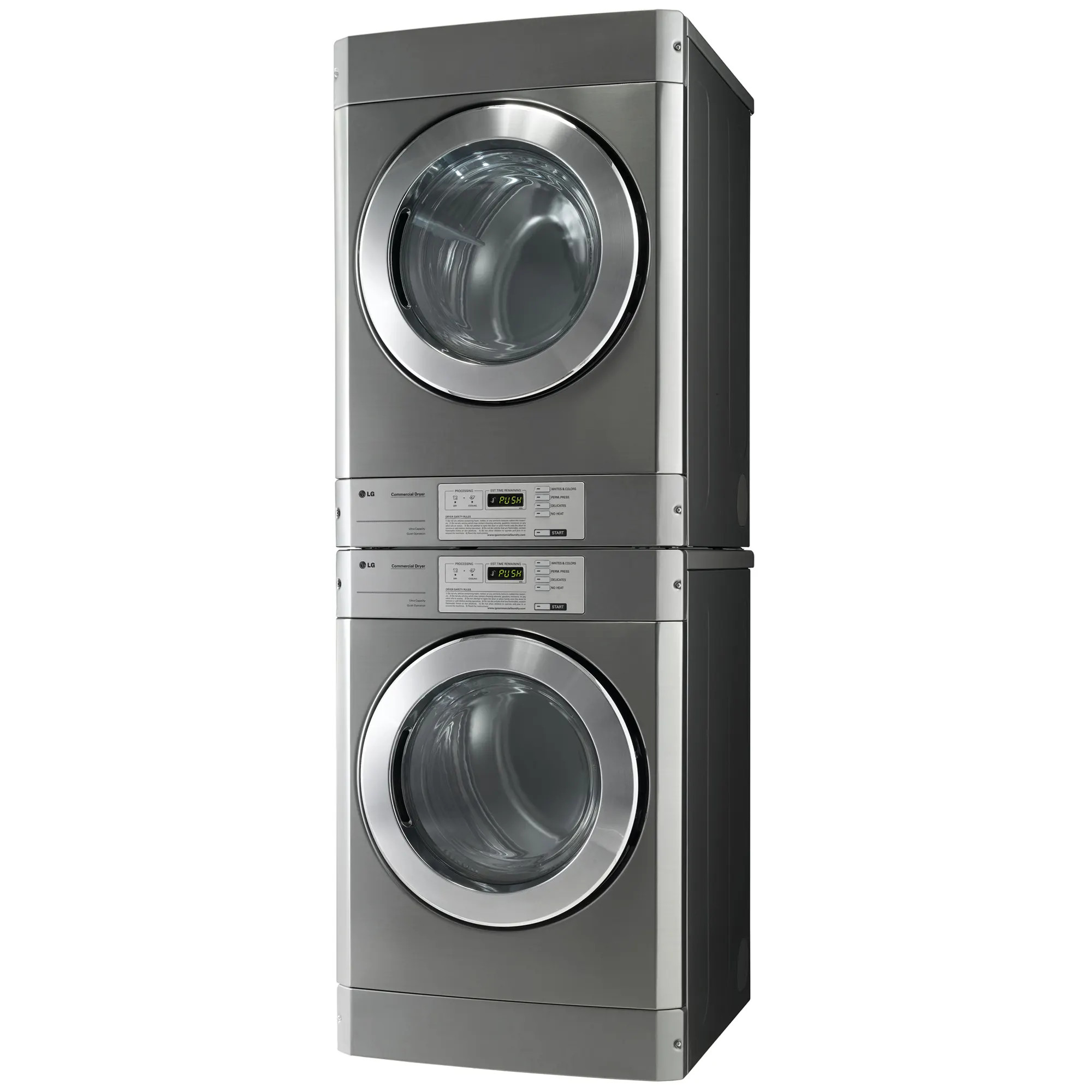

LG Titan 15 kg industrial dryer tower with coin mechanism

The LG TITAN 15 kg drying column dryer + dryer with built-in internal coin box combines two high-performance commercial dryers in a single vertical structure. It is the perfect solution for self-service laundries, hotels, gyms, restaurants, bars and healthcare centres that need to double drying capacity while optimising space without sacrificing professional performance.

This tower is available with two dryer options: gas or electric, allowing each business to choose the configuration that best suits its installation and energy consumption. In addition, this model includes a hidden internal coin box, fully integrated inside the structure. This system allows pay-per-use operation with coins while remaining protected, invisible and offering a cleaner, more professional aesthetic. The user inserts the coins and the system automatically enables the operation of each dryer.

GENERAL FEATURES

• Compact drying column with two LG TITAN 15 kg dryers for professional use
• Two independent dryers stacked vertically to double capacity in the same footprint
• Available with gas or electric dryers depending on installation needs
• High-efficiency ventilated drying system for intensive continuous use
• Automatic drying sensor that adjusts temperature and final time according to real humidity
• Flow Sensing technology: automatic detection of duct blockages
• AdaptAble™ controls that allow repositioning of the panel for easy column operation
• LG Smart Solution with cloud connection for remote management, statistics and diagnostics
• Panels with integrated WiFi system
• Security system with 4-digit password for programme customisation
• Built-in and hidden internal coin box for automatic coin payment, more aesthetic, secure and vandal-resistant
• Reversible door on both dryers for flexible installation
• Easy-access lint filter for quick maintenance

TECHNICAL SPECIFICATIONS

LG TITAN 15 kg DRYER – GAS OPTION (configurable in the tower)

• Drum volume: 300 L
• Drum diameter: 750 mm
• Drum depth: 640 mm
• Dimensions (W x D x H): 760 x 790 x 1130 mm
• Net / gross weight: 76 / 83 kg
• Electrical rating: 220–240 V / 50 Hz / 2.5 A
• Gas consumption per cycle: 6.5 L
• Electrical consumption: 0.4 kW/cycle (max. 0.8 kW)
• Heating type: natural gas or LPG
• Drying type: ventilated
• Airflow: 180 CFM
• Motor power: 0.35 kW
• Gas rating: 25,000 BTU
• Default programme duration: 50–55 min
• Air outlet diameter: 100 mm
• Programmes: High Temp, Med Temp, Low Temp, No Heat
• Drum: Alocosta coating

LG TITAN 15 kg DRYER – ELECTRIC OPTION (configurable in the tower)

• Drum volume: 300 L
• Drum diameter: 750 mm
• Drum depth: 640 mm
• Dimensions (W x D x H): 760 x 790 x 1130 mm
• Net / gross weight: 76 / 83 kg
• Electrical rating: 220–240 V / 50 Hz / 24 A
• Electrical consumption: 5.0–6.2 kW/cycle
• Heating type: electric
• Drying type: ventilated
• Airflow: 180 CFM
• Motor power: 0.35 kW
• Heating elements: 6.2 kW
• Default programme duration: 50–55 min
• Air outlet diameter: 100 mm
• Programmes: High Temp, Med Temp, Low Temp, No Heat
• Drum: Alocosta coating
