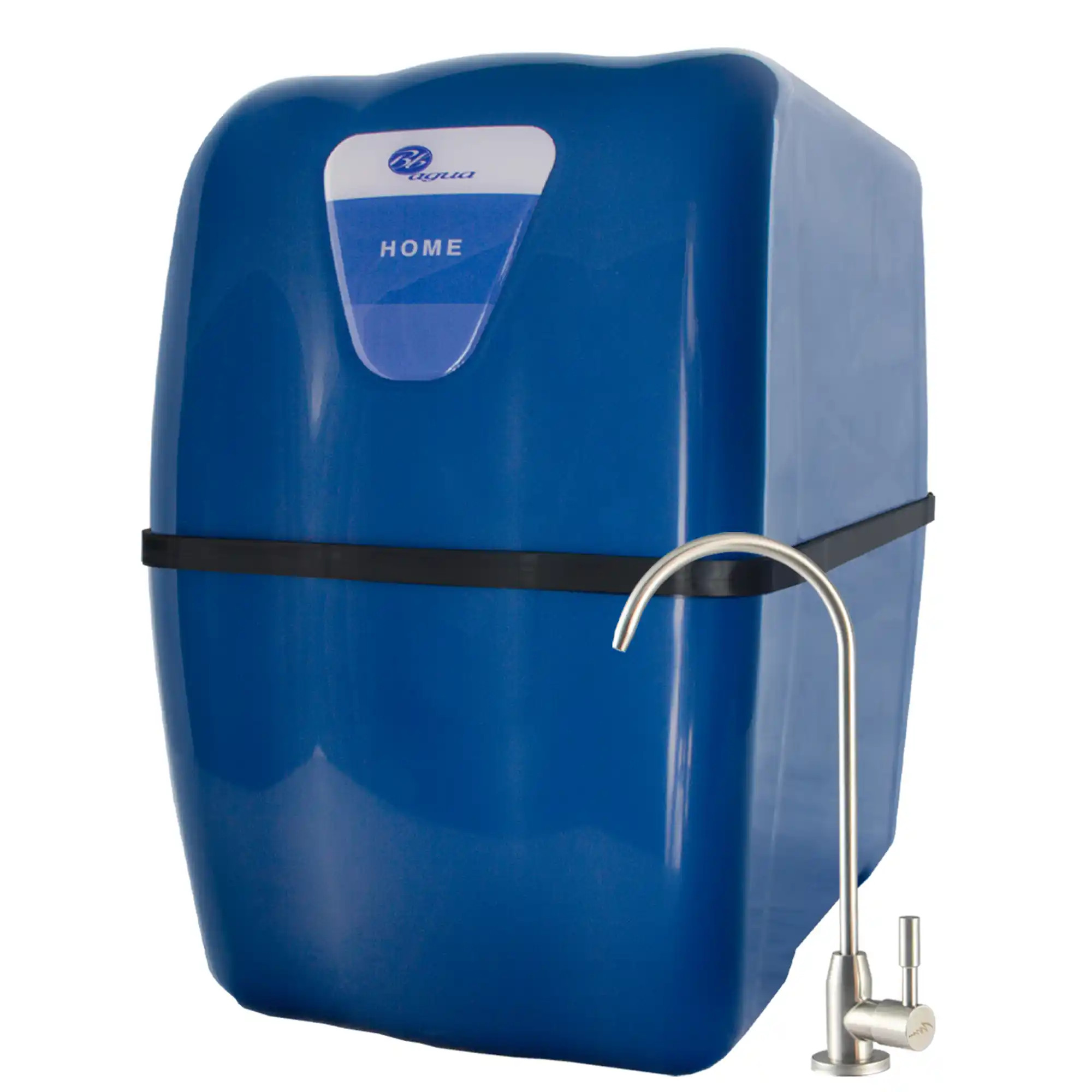

Professional compact 5-stage reverse osmosis system with faucet

GENERAL FEATURES

• 5-Stage Purification System: A complete process that removes sediment, chlorine, odors, flavors, and dissolved salts, providing low-mineralization water ideal for human consumption.

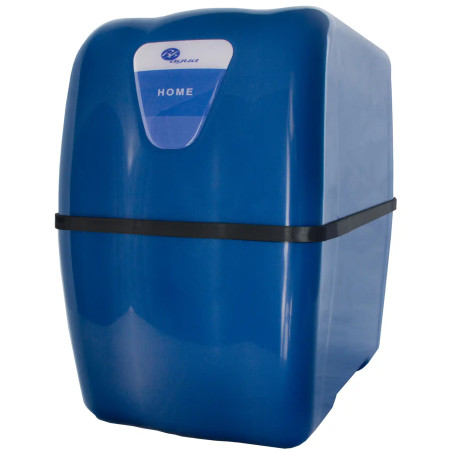

• Compact "Cabinet" Design: Closed housing structure that integrates filters and the tank into a single body, offering a clean, protected, and organized aesthetic under the sink.
• Low-Rejection Technology: Optimized to be more efficient and environmentally friendly, reducing water waste compared to traditional osmosis systems.
• Smart Safety: Incorporates a mechanical leak sensor that automatically shuts off the water supply upon detecting moisture, preventing potential home flooding.
• System Protection: Includes an integrated pressure reducer to protect internal components from water hammer and excessive pressure in the hydraulic network.
• Premium Components: Equipped with a high-performance 75 GPD membrane and a high-quality chrome dispensing faucet, certified as lead-free.
• Sustainability and Savings: Eliminates the need to buy bottled water, drastically reducing plastic waste and allowing for rapid equipment amortization.

TECHNICAL SPECIFICATIONS

• Maximum Production: 270 Liters/day (Optimized performance for intensive domestic use)
• Required Inlet Pressure: 3 - 5 Bar (For efficient operation without a pump)
• Maximum Inlet TDS: 1,500 ppm (Suitable for water with high mineral load)
• Tank Volume: 8 Liters (Integrated inside the cabinet housing)
• Equipment Dimensions: 40 x 25 x 40 cm (H x W x D)
• Filters: Encapsulated Inline technology for greater hygiene and ease of replacement
• Certifications: CE, Water Quality, and compliance with UNE 149101 standards

RECOMMENDED USES

• Kitchens with Optimized Space: Thanks to its width of only 25 cm, it is the perfect solution for narrow or shallow sink cabinets.
• Infant Feeding and Family Well-being: Provides pure and safe water, recommended for preparing baby bottles, baby food, and for individuals requiring low-sodium diets.
• Eco-Conscious Homes: An excellent alternative for users seeking to reduce their carbon footprint by eliminating single-use plastic consumption.
• Flavor Enhancer: Ideal for coffee and tea lovers, as removing chlorine and impurities enhances the natural aromas of beverages and food.

FREQUENTLY ASKED QUESTIONS (FAQ)

• What are the pressure requirements for this model? As this is a non-pump osmosis unit, it requires a minimum mains pressure of 3 bar. If your home pressure is lower, opting for a model with an integrated booster pump is recommended to guarantee tank filling.
• How does the integrated leak sensor work? The unit features a safety device at its base. If an internal water leak occurs, the sensor immediately blocks the mains water inlet to protect your furniture and floor.
• Does the tank take up extra space? No, in this compact design, the 8-liter tank is housed inside the protective casing. The entire system (filters and tank) is installed as a single 40x25x40 cm block.
• What maintenance does the unit require? Annual replacement of the inline filters is recommended to guarantee water quality. The osmosis membrane has an estimated lifespan of 3 to 4 years, depending on the inlet water hardness.

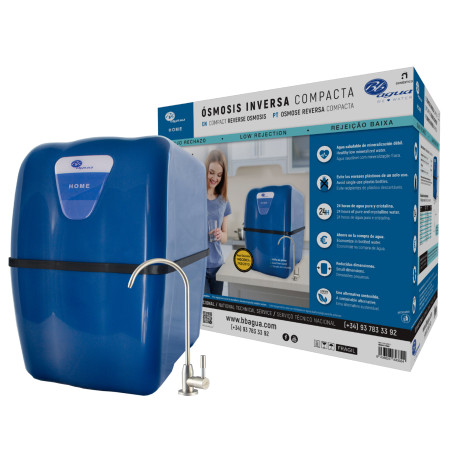

• Is everything needed for installation included? Yes, the kit comes complete with the lead-free chrome faucet, pressure reducer, leak sensor, tubing, and quick connectors for a simple under-sink installation.
